฿4,500.00
จำนวนในสต็อก: 10
ยี่ห้อ: Eager-LED
รหัสสินค้า: P5.33-OD8S-SMD1921-60x60-E
Availability:
In stock (10 items available)

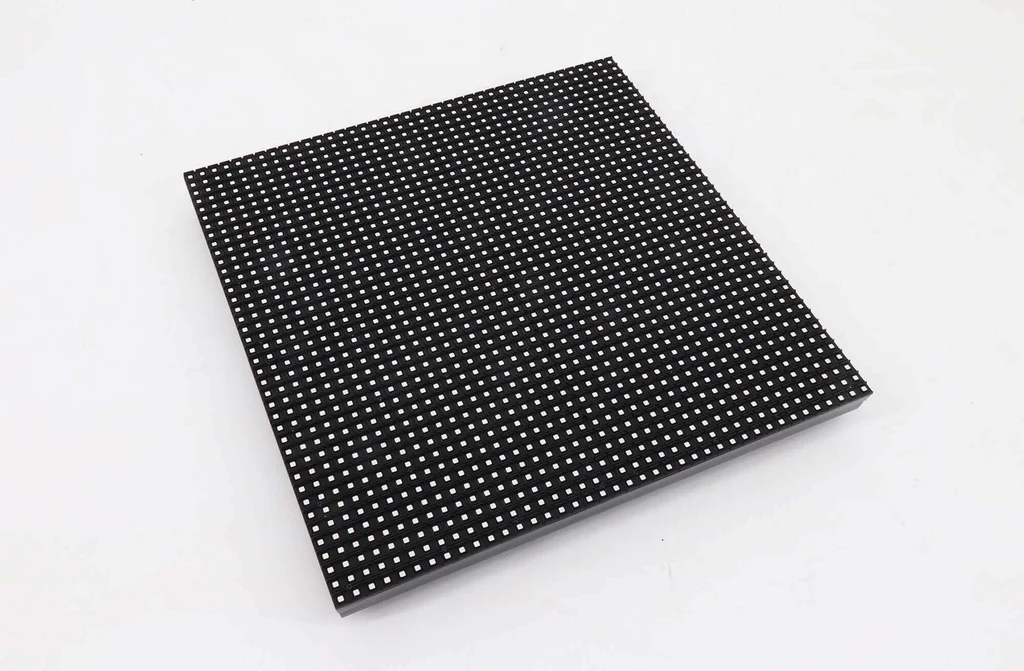

Features of P5.33 Outdoor 320x320mm Dual Maintenance LED Screen Module:

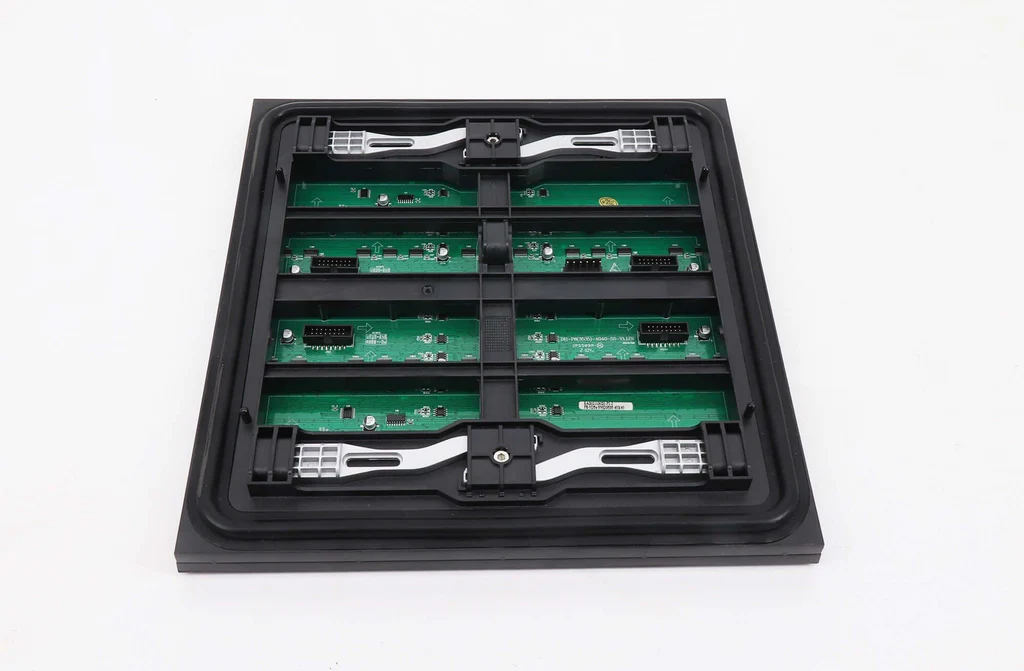

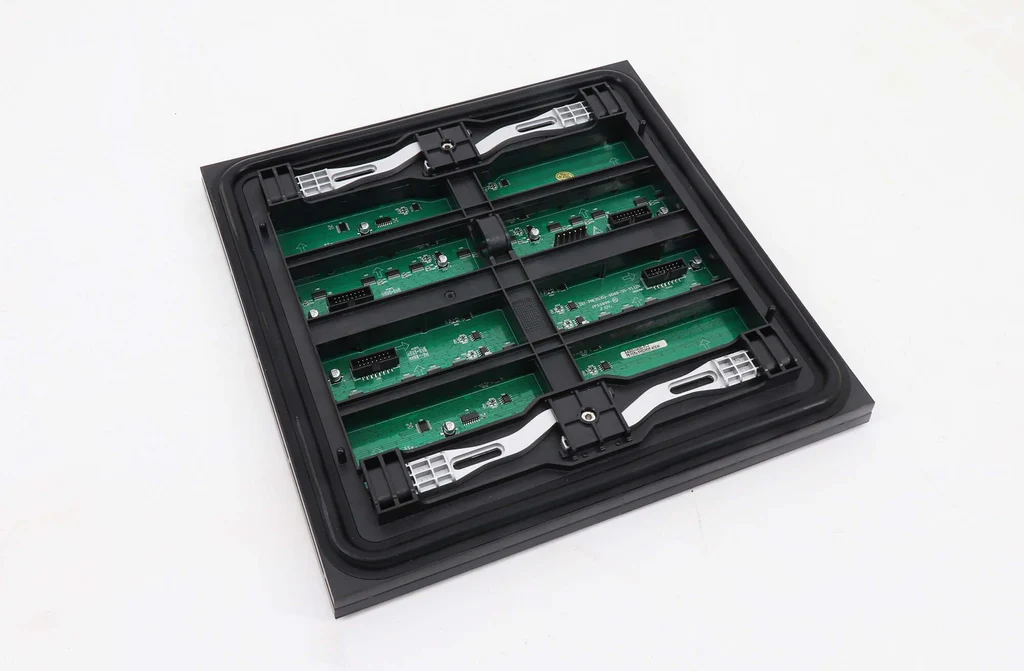

1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.

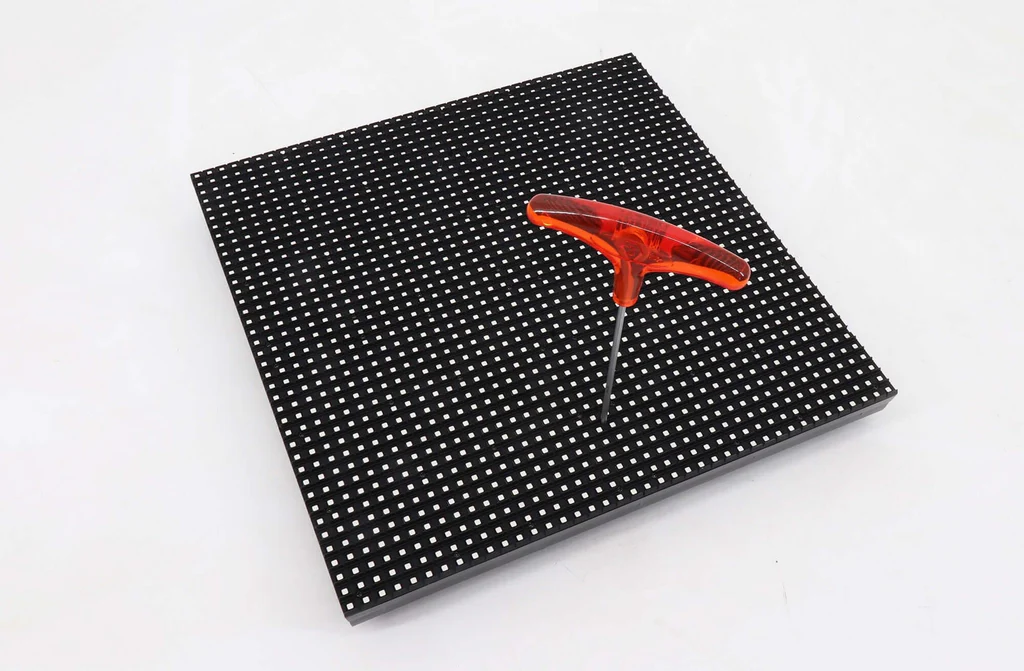

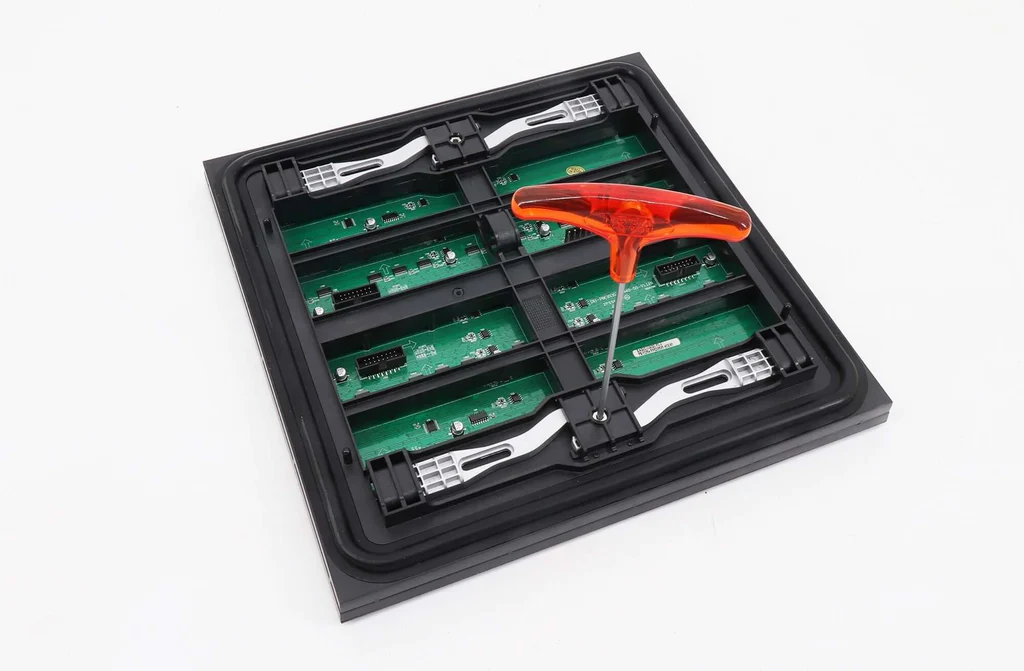

2) Easy maintenance, easy to take the modules with a hexagonal screwdriver.
3) No screws, easier to take the modules and mount the modules on the cabinet.
4) 5mm pixel pitch with SMD, perfect solution for semi-outdoor advertising LED screen and outdoor rental LED screen.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
6) Reasonable PCB design, reliable and long life time.
Applicable situations of P5.33 Outdoor 320x320mm Dual Maintenance LED Screen Module:
Outdoor LED signs requiring front maintenance
Commercial video screens with small sizes
Double face LED signs
Small LED banner signs
Outdoor rental LED screen requiring fast maintenance
Parameters of P5.33
Outdoor 320x320mm Dual Maintenance LED Screen Module:
|
Module Parameter |
|
|
Pixel Pitch |
5.33mm |
|
Pixel Configuration |
SMD1921 |
|
Density |
35,156 pixels/㎡ |
|
Module Resolution |
60pixel(L) * 60pixel(H) |
|
Module Dimension |
320mm(L) * 320mm(H) * 22mm(D) |
|
Driving Mode |
Constant current, 1/8duty |
|
Module Mask |
Pure black mask---high contrast
screen |
|
Electricity Parameter |
|
|
Optical Ratings |
|
|
Brightness |
≥6,000 CD/㎡ |
|
Viewing Angle |
140°(Horizontal); 120°(Vertical) |
|
Best Viewing Distance |
≥5m |
|
Gray Grade |
14 bits |
|
Display Color |
4.4 trillion colors |
|
Brightness Adjustment |
100 grades by software or
automatically by sensor |
|
Max. Power Consumption |
75 W |
|
Control System |
|
|
Frame Frequency |
≥60Hz |
|
Refresh Frequency |
≥1920Hz |
|
Input Signal |
Composite Video, S-video, DVI,
HDMI, SDI, HD-SDI |
|
Control Distance |
100M (Ethernet cable); |
|
20KM (Optical fiber cable) |
|
|
Support VGA Mode |
800*600, 1024*768, 1280*1024,
1600*1200 |
|
Color Temperature |
50009300 adjustable |
|
Brightness Correction |
Pixel by pixel, module by module,
cabinet by cabinet |
|
Reliability |
|
|
Working Temperature |
-20～+60 ºC |
|
Storage Temperature |
-30～+70 ºC |
|
Working Humidity |
10%～90% RH |
|
Lifetime |
100,000 hours |
|
MTBF |
5000 hours |
|
Continuous Operating Time |
≥72 hours |
|
Protection Grade |
IP65 |
|
Out-of-Control Pixel Rate |
≤0.01% |
