฿39,000.00
จำนวนในสต็อก: 3
ยี่ห้อ: VDWALL
รหัสสินค้า: VDWALL-LVP615
Availability:
In stock (3 items available)

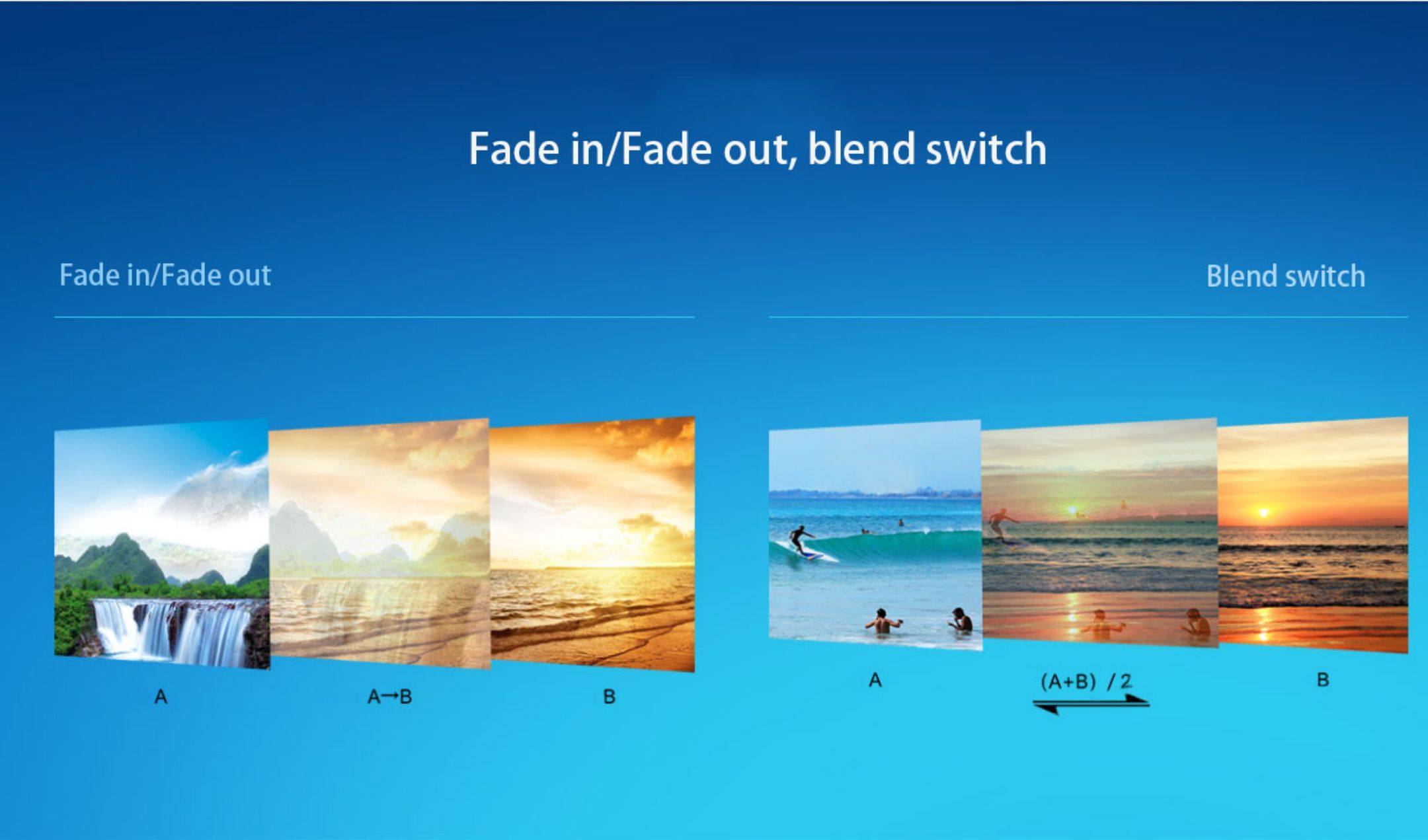

1. Seamless switching, fade-in and fade-out switching, blend switching
2. Take fast and seamless switching
3. AIAO (Any In Any Out), arbitrary image cropping
4. DVI EDID editable, perfect point-to-point display

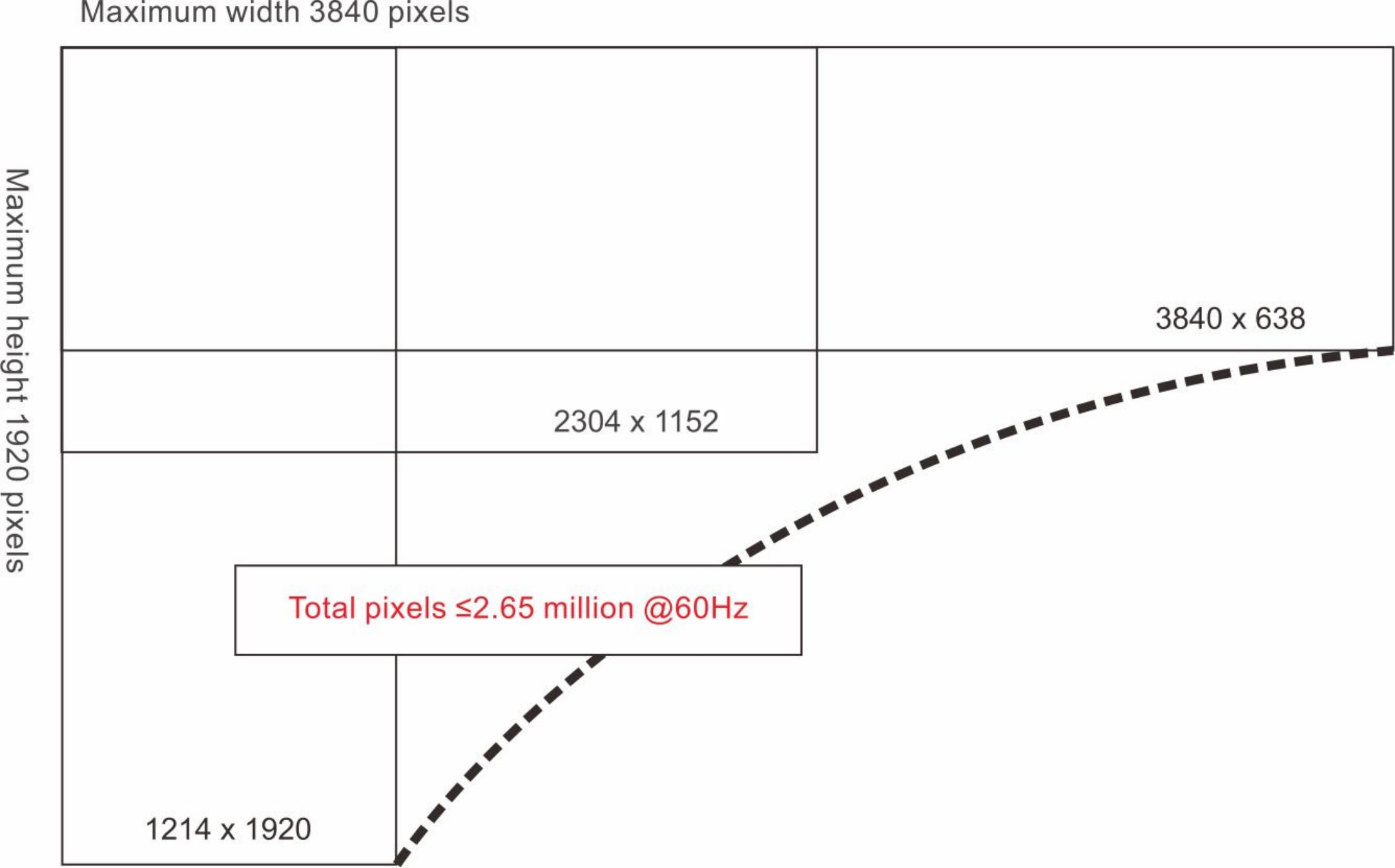

5. Custom output resolution, up to 3840 horizontal pixels and 1920 vertical pixels
6. 3 sets of preset dual-picture (PIP/POP) display, high-definition subtitle display
7. Multiple LVP615 DVI-LOOP cascade splicing, realize infinite screen driving
8. Front panel/USB/Lan/RS232 control, RS232 loop design, 1 PC control up to 255 devices
|
Port |
Description |
|
V1 |
1xComposite
Video (PAL/ NTSC) |
|
V2 / YPbPr |
1xComposite video (PAL/ NTSC) or analog component video input |
|
VGA1~VGA2 |
2xPC
analog signal |
|
DVI |
1x DVI ( PC digital signal) |
|
HDMI |
1xHDMI
(HD digital signal) |
|
DP |
1xDisplayPort( digital signal
input) |
|
EXT. |
1x
Extended PAL/NTSC composite video input |
Video signal output
|
Port |
Description |
|
VGA OUT |
1-channel
analog RGBHV signal output, which can be connected to a local display device
for monitoring (it is strongly recommended to use this port when operating
and setting LVP615). |
|
DVI OUT1 / DVI OUT2 |
2 same DVI digital graphic signal output, it can be
connected to external 2 LED transmission cards or LED transmission
boxes. |
|
DVI
Loop OUT |
1-channel
computer DVI digital signal loop output |
Other ports
|
Port |
Description |
|
LAN |
TCP/IP
local area network control interface |
|
USB |
USB communication port |
|
RS232
IN |
Serial
communication interface, used to connect the RS232 port of
PC to realize PC software control. |
|
RS232 LOOP |
Serial communication cascading output for connecting the
RS232 IN of next unit, through single PC can control several units. |
|
RF |
Antenna
interface of wireless control function |
Input port VDwall LVP615/VDwall LVP615S
|
Inputs |
||||
|
Number/type |
2×Video 1×YPbPr 2×VGA（VESA） 1×DP（VESA） 1×DVI（VESA） 1×HDMI（VESA/CEA-861） 1×EXT.（extended Video/DVI-I/SDI） |
|||
|
Video system |
PAL/NTSC |
|||
|
Composite
video amplitude/Impedance |
1V（p_p）/ 75Ω |
|||
|
YPbPr format |
SD/HD（CEA -861） |
|||
|
YPbPr Amplitude/Impedance |
Y= 1.0V（p_p）/ 75Ω Pb= 0.35V（p_p）/ 75Ω Pr= 0.35V（p_p）/ 75Ω |
|||
|
VGA format |
PC（VESA） |
≤2048×1152 _60Hz |
||
|
VGA Amplitude/Impedance |
R、G、B = 0.7 V（p_p）/ 75Ω |
|||
|
DP format |
DisplayPort1.1（VESA） |
|||
|
DVI format |
PC（VESA） |
≤2304x1152_60Hz |
||
|
HDMI1.3（CEA -861） |
||||
|

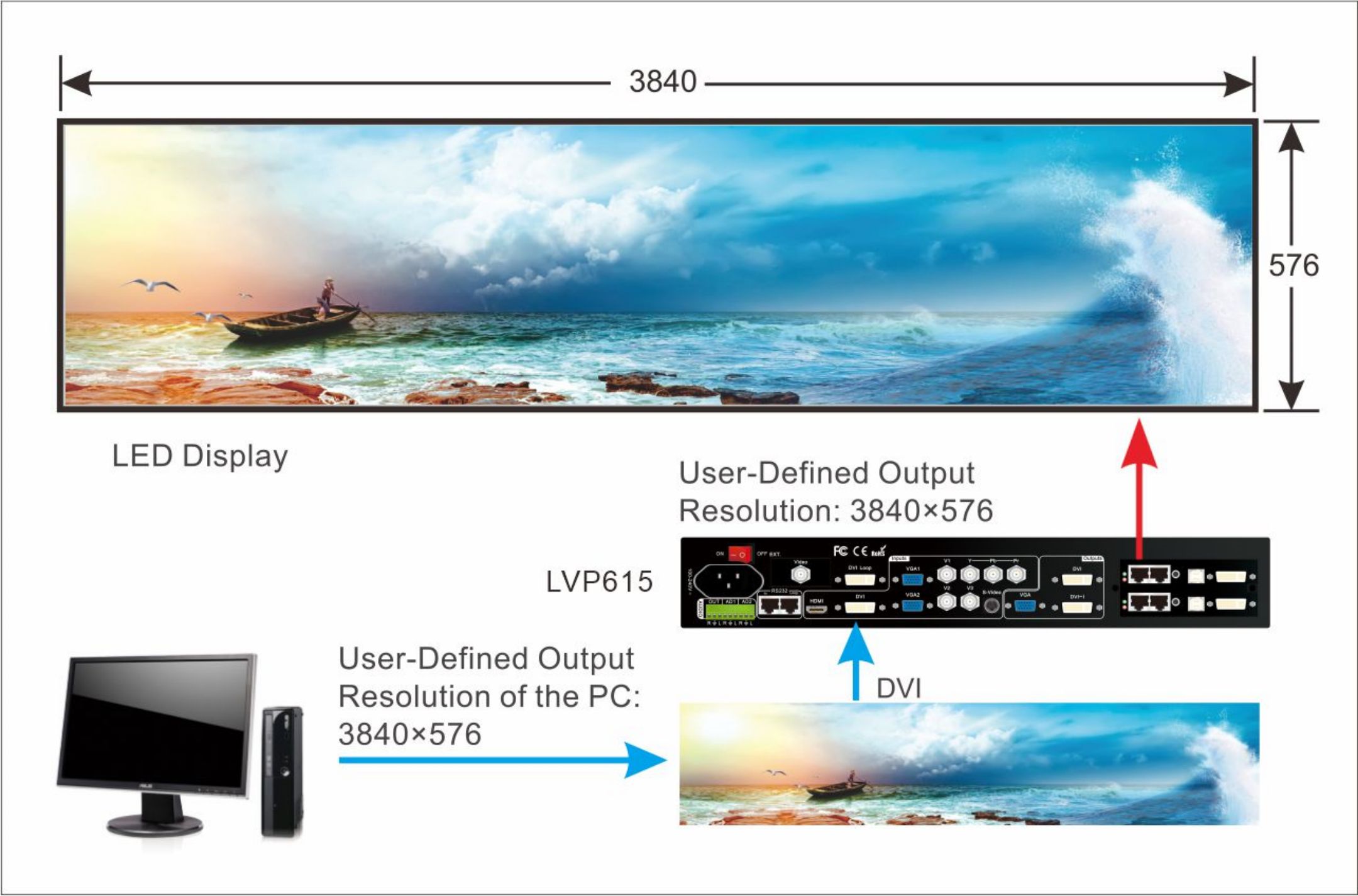

Custom
output format |
width≤3840
height≤1920 |
|||
|
HDMI format （HDCP1.3） |
PC（VESA） |
≤2304x1152_60Hz |
||
|
HDMI1.3（CEA -861） |
≤1920x1080p_60Hz |
|||
|
SDI format |
SMPTE259M-C SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M |
480i_60Hz 576i_50Hz 720p、1080i、1080p |
||
|
Audio |
2.0Vp-p/10KΩ |
|||
|
Input connectors |
Video：BNC YPbPr：BNC×3 VGA：15pin D_Sub(female) DP：DisplayPort
SMT female 20pin DVI：24+1 DVI_D HDMI：HDMI port A type SDI ：BNC |
|||
|
Outputs
of VDWALL LVP615 |
||||
|
Number /Type |
1×VGA（RGBHV） 2×DVI |
|||
|
VGA/DVI resolution |
1024×768_60Hz/75Hz 1080×1920_60 Hz 1200×1600_60 Hz 1280×1024_60Hz/75Hz 1366×768_60Hz 1440×900_60Hz 1536×1536_60
Hz 1600×1200_60Hz 1920×1080p_50Hz/60Hz 1920×1200_60
Hz 2048×1152_60Hz 2304×1152_60Hz 2560×816_60Hz Custom
output format（maximum output
horizontal 3840 pixels or vertical 1920 pixels.） |
|||
|
VGA Amplitude/Impedance |
R、G、B = 0.7 V（p_p）/ 75Ω |
|||
|
Output
ports |
VGA OUT：15pin D_Sub( female) DVI OUT1：24+1 DVI_D DVI OUT2：24+1 DVI_D |
|||
|
others |
||||
|

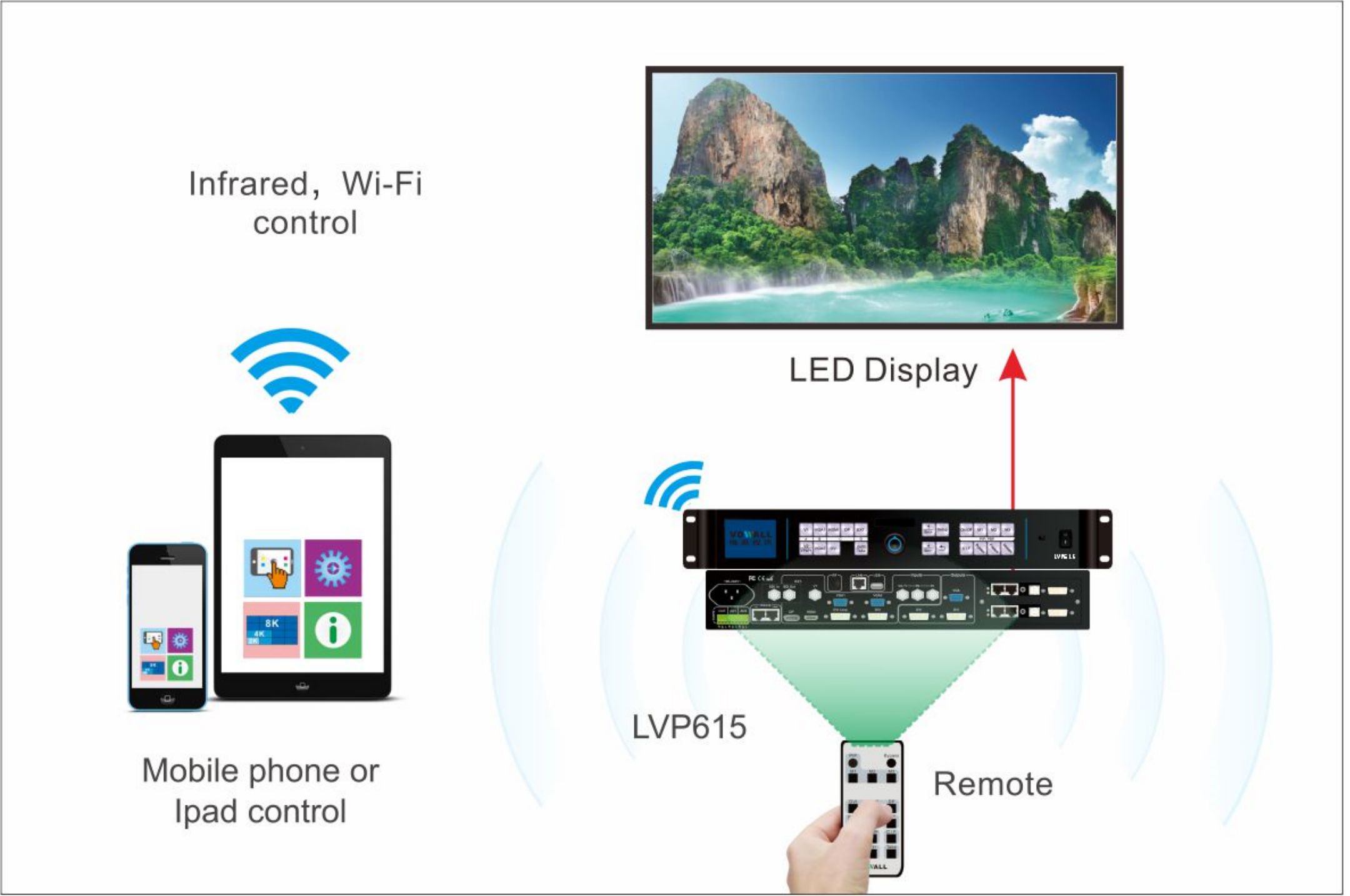

Control
methods |
Wireless wifi,IP/LAN,front
panel button,infrared remote control, PC software,Ipad, mobile phone terminal and etc.. |
|||
|
Input voltage |
100-240VAC 50/60Hz |
|||
|
Maximum
power consumption |
≤25W |
|||
|
Environment temperature |
0-45 ℃ |
|||
|
Environment
humidity |
15-85% |
|||
|
size（package） |
130mm（H）×350mm（W）×520mm（L） |
|||
|
Weight |
G.W.：5.7 Kg, N.W.：4.0 Kg |
|||
