LINSN RV908M32 1/32 Duty LED Display Receiving Card

รายละเอียดสินค้า

Overview

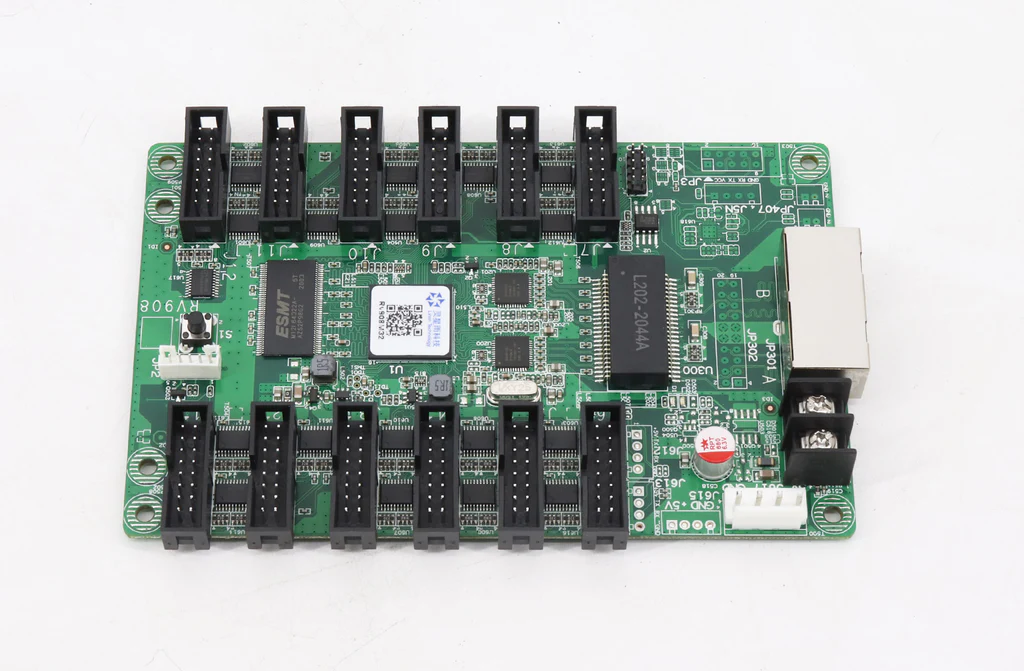

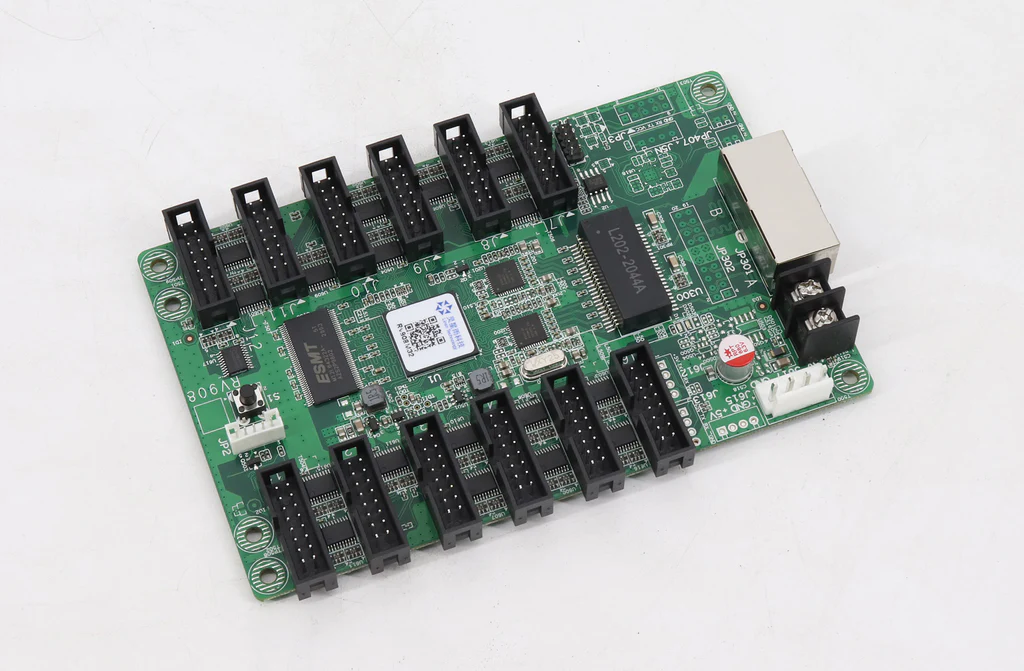

Linsn RV908M32 LED receiver card is a standardized product designed specifically for LED screen manufacturers. With its integration of 12 standard hub75-type connectors, eliminating the need for an extra hub card, the RV908M32 offers seamless connectivity and simplified installation. Supporting up to 24 sets of RCG data, this receiver card provides exceptional performance and versatility for LED displays.

Features
Powerful RGB Data Output
The RV908M32 LED receiver card excels in delivering exceptional RGB data output capabilities. With support for 24 groups of RGB data output, it enables precise control and customization of colors, ensuring vibrant and accurate visuals. The pixel-by-pixel brightness calibration and single-card color space conversion further enhance the display quality, guaranteeing an immersive viewing experience.

High Resolution and Compatibility
In addition, the RV908M32 is designed to handle high-resolution LED displays effortlessly. Supporting a maximum resolution of 1024X768 pixels, it ensures stunning image quality and sharpness. Additionally, its compatibility with a wide range of driver ICs (Like ICN2038, ICN2055, MBI5124, ICN2053, MBI5153, ICND2163, and ICN2038S, and more) allows for seamless integration, enabling high refresh rates and superior gray-level performance.

Comprehensive Monitoring and Control
With advanced monitoring capabilities, the RV908M32 empowers users with real-time insights and control over the LED display system. Temperature detection ensures optimal operating conditions, while cabinet-door monitoring enhances security and maintenance efficiency. The fan-speed monitoring feature enables proactive cooling management, ensuring optimal performance and longevity. Optional add-ons, such as humidity and smoke monitoring modules, provide an extra layer of protection and safety.

Efficient Operation and Backup
Furthermore, the RV908M32 streamlines operation and configuration management. Its support for configuration file RCG readback allows users to access and modify saved settings easily. The LCD monitoring display provides real-time information on system status, facilitating efficient monitoring and troubleshooting. For uninterrupted operation and data redundancy, the card supports hot backup with dual receiver cards, ensuring seamless performance and peace of mind.

Standards Compliance
What’s more, the RV908M32 upholds stringent standards and certifications, including RoHS compliance, demonstrating its commitment to environmental sustainability. It also adheres to EU standards CE-EMC class B, ensuring electromagnetic compatibility and safety, thereby meeting industry regulations and ensuring reliable operation.

Enhanced Color Input
Besides, The RV908M32 introduces enhanced color input capabilities with its support for 12-bit HDMI color input. This feature enables a more extensive color gamut and richer color reproduction, unlocking the full potential of the display and providing a visually captivating experience.

Smooth Signal Transmission and Testing
The RV908M32 LED receiver card ensures smooth signal transmission through its support for network cable BER (Bit Error Rate) testing. This feature allows for the detection and correction of signal errors, ensuring a stable and reliable connection between the LED screen and the control system.

Flexible Integration and Compatibility
The RV908M32 is designed to seamlessly integrate into various LED display setups. It supports 138 decode and 595 serial decode, providing flexibility in connecting with different types of LED modules and systems. Whether using general driver ICs or PWM driver ICs, the RV908M32 ensures high refresh rates and precise gray level control, delivering smooth and lifelike visuals.
