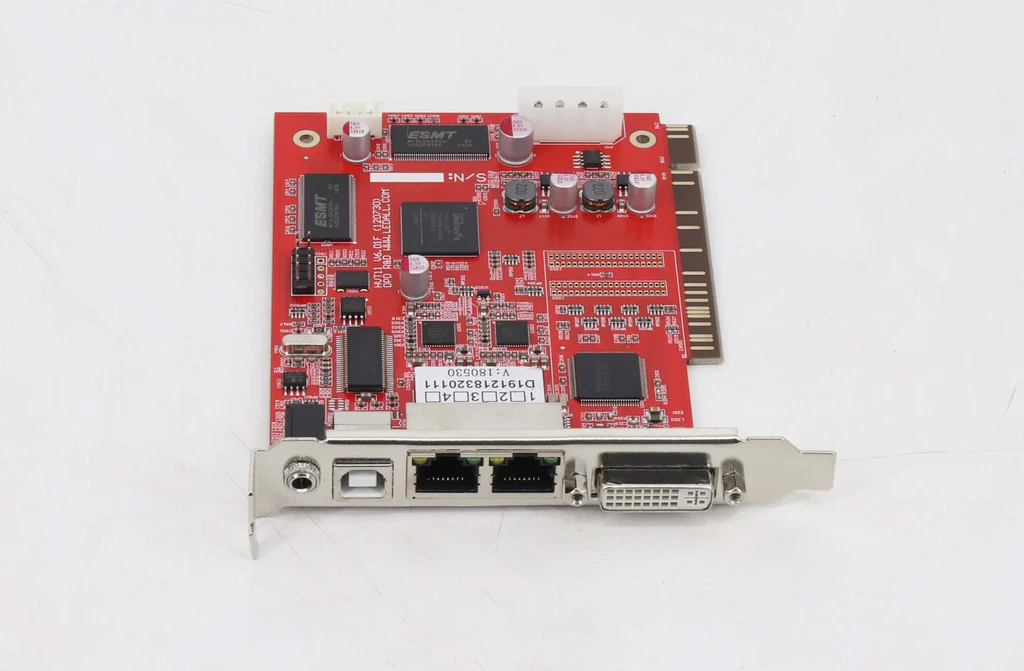

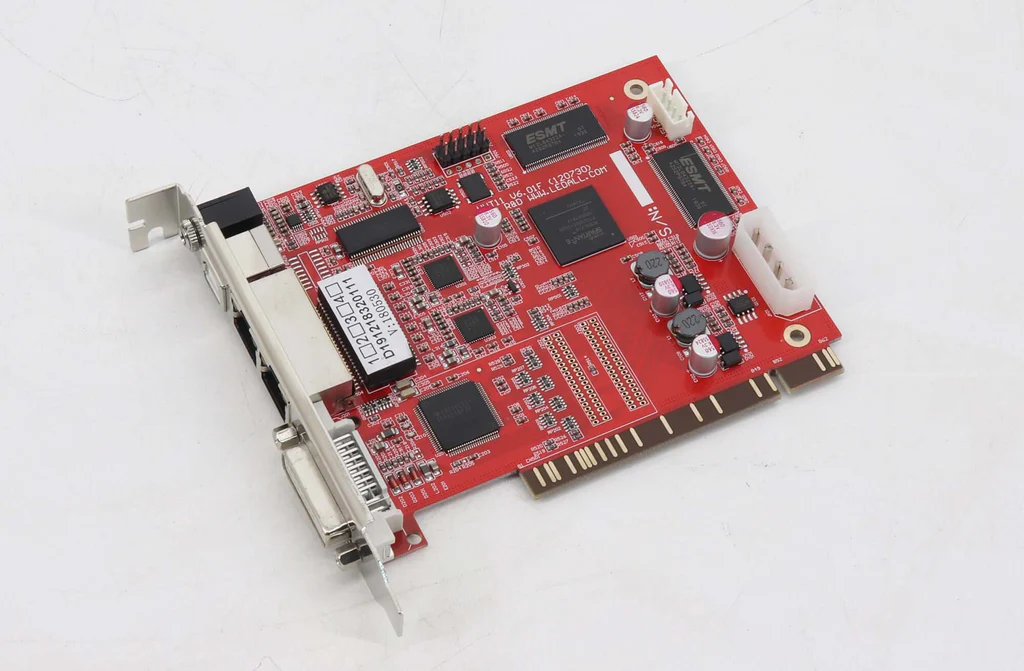

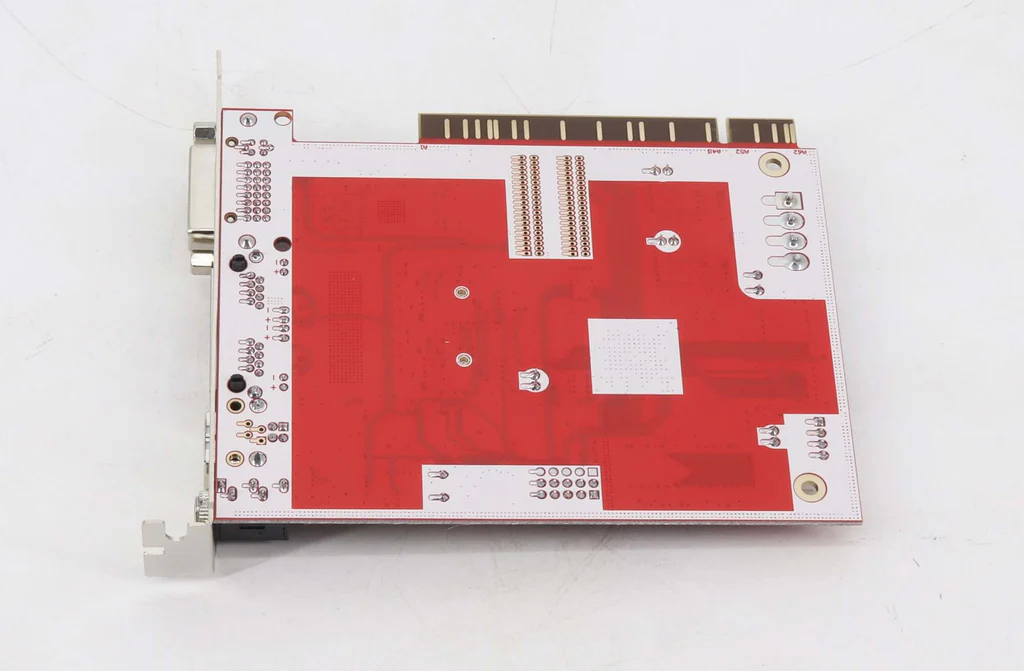

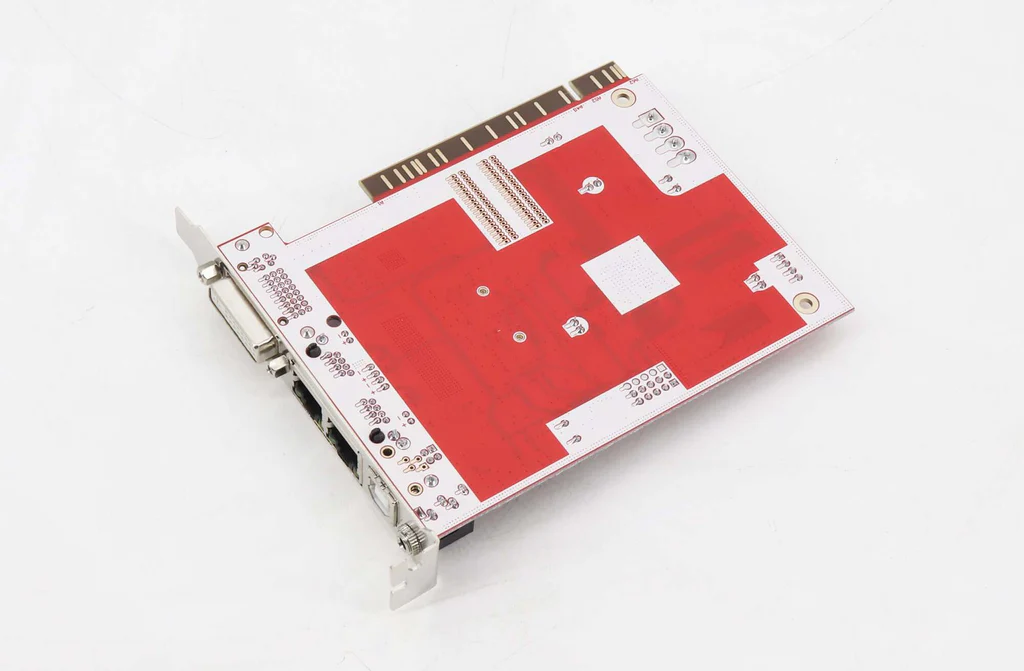

DBstar DBS-HVT11(HVT2011) LED Display Transmission Card
Main Image

DBstar DBS-HVT11(HVT2011) LED Display Transmission Card

฿8,500.00

จำนวนในสต็อก: 3

ยี่ห้อ: DBstar
รหัสสินค้า: DBS-HVT11
Availability: In stock (3 items available)

รายละเอียดสินค้า

Parameters of DBstar DBS-HVT11(HVT2011) LED Display

Transmission Card: Type Typical value Max value

Supported screen type single color, dual-color,full-color, real pixel,virtual pixel.

Supported LED drivers MBI5026/MBI5030/MBI5036/ MBI5039/MBI5042/MBI5050/MBI6024/ LPD6803/DM413/DMX512/ZQL9726 TCD62D722/TC62D766/MBI5050/MBI6024

Pixels by single sending card 2048×640(dual ports)

Number of receiving cards connected by cable <100 256

Pixels by single receiving cards 256 x192(full color) 512×384(full color) 1024 x512(dual color) 1280 x512(dual color)...

ข้อมูลเฉพาะ

Parameters of DBstar DBS-HVT11(HVT2011) LED Display Transmission Card:

Type

Typical value

Max value

 Supported screen type

 single color, dual-color,full-color, real pixel,virtual pixel.

 Supported LED drivers

MBI5026/MBI5030/MBI5036/

MBI5039/MBI5042/MBI5050/MBI6024/

LPD6803/DM413/DMX512/ZQL9726

TCD62D722/TC62D766/MBI5050/MBI6024

 Pixels by single sending card

2048×640(dual ports)

 Number of receiving cards connected by cable

<100

256

 Pixels by single receiving cards

256 x192full color

512×384full color

1024 x512dual color

1280 x512dual color

 RGB data groups by single receiving card

16-24

24

 Lines by one group RGB

1/2/4/8/16/32

32

Grey grades

4096(4k)

65536(64k)

 Data CLK frequency

15.62MHz

31.25MHz

 Refresh rate

180Hz

>3600Hz(MBI5042)

 Brightness wastage

15~20%

<5%

 PWM brightness adjust degree

256(may automatically adjust by brightness sensor)

Electronic current plus brightness adjustment grade

64/256(according to led drivers)

 Dot by dot revise pixels by PWM brightness

64x64

256x256

Pixels on open circuit and short circuit error detection

static2048x161/21024x16

1/42048x161/84096x161/168192x16

 Fiber transmission distance

 Multi-mode fiber 500meters single-mode fiber10KMs

 Other functions

 Power on gradual protection OE Polarity switch protect screen scan tubes, led screen self-detecting

No sending card function

Sending images by 1000M network card PC
