Novastar Receiving Card MRV416

รายละเอียดสินค้า

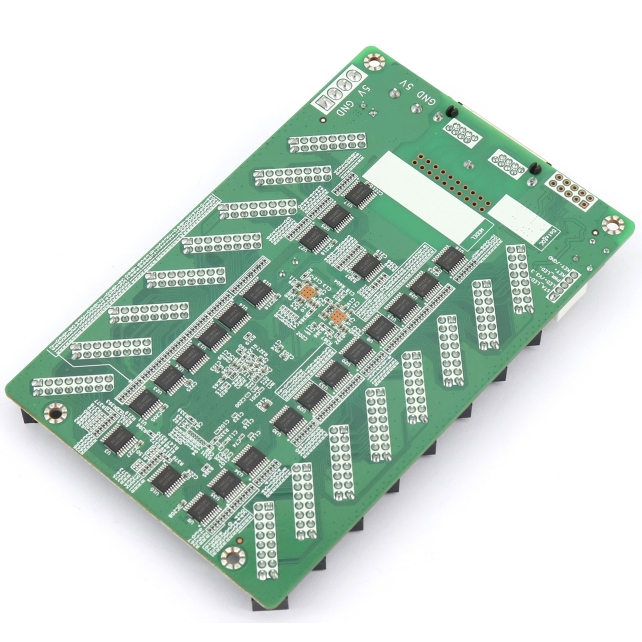

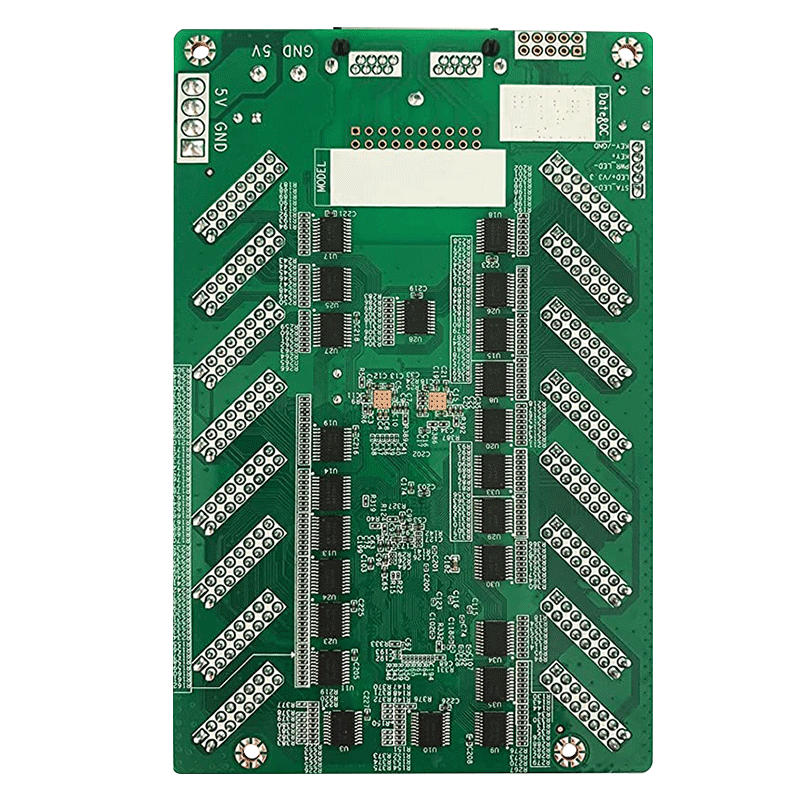

Novastar MRV416 Receiver Card

MRV416 is a universal receiving card launched by Novarstar. The maximum load of single card is 512*384 pixels . supports brightness correction, fast line adjustment, 3D and RGB independent gamma adjustment, so as to improve the display effect of the screen, and improve the user experience of MRV416 to communicate with 16 standard hub75E interfaces, which has high stability and supports up to 32 sets of RGB well data, Use of words in a variety of field environments， and with Brightness adjust.

Input voltage: DC 3.3v-5.5v,
Constant current: 0.5A
Rated power: 2.5W
Consumption temperature: – 20℃- + 70℃
Humidity: 10%RH-90%RH, non condensing
Temperature: – 25 ℃ – + 125 ℃
Size: 14.5mm x 91.5mm x 18.4mm
Weight: 100.5g
Passed: RoHS, EMC class A
