POWER SUPPLY (80+ BRONZE) 550W ITSONAS DARK FOREST SFX

Brand

ITSONAS

Model

Dark Forest SFX

Type

ATX

Power Capacity

550W

Input Voltage

200- 240V

Input Current

8 ~ 10 Amps

Input Frequency Range

47 ~ 63 Hz

Operating Temperature

20~90%

Fan Size

90mm

Efficiency

More than 80% conversion efficiency

MTBF

100,000 hours or more (60% loads, 200V/50Hz voltage input, environmental)

Safety Regulation

CE/CB/FCC/TUV/CUL/BSMI

Protection

OLP/OCP/UVP/OVP/OHP/SCP

Certification

80 PLUS BRONZE

Modular

Full Modular

ATX Main Connector

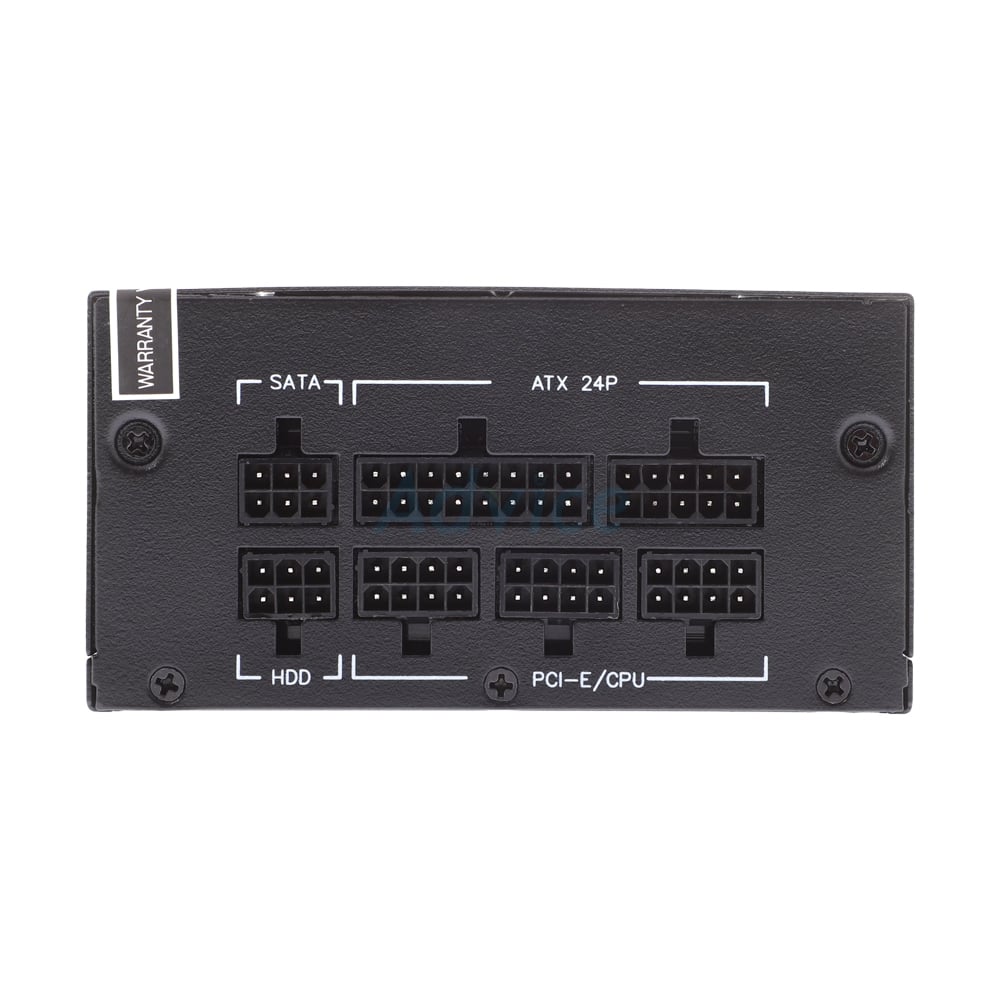

(20+4 Pin) x 1 Connector

CPU Power Connector

(P4+P4 Pin) x 2 Connector

PCIe Power Connector

(6+2 Pin) x 2 Connector

SATA Power Connector

4 Connector

Peripheral Power Connector

4 Connector

Floppy Power Connector

None

RGB Power Connector

None

PSU Length

130mm

Package Contents

N/A

Dimension

(W x D x H) : 11.00 x 13.00 x 6.50 cm

Net Weight

0.00 KG

Package Dimension

(W x D x H) : 17.00 x 22.00 x 9.00 cm

Gross Weight

1.32 KG

Volume

3,366.00 cm³
