฿3,000.00
จำนวนในสต็อก: 10
ยี่ห้อ: Eager-LED
รหัสสินค้า: P10-OF4L-1R1G1B32x32
Availability:
In stock (10 items available)

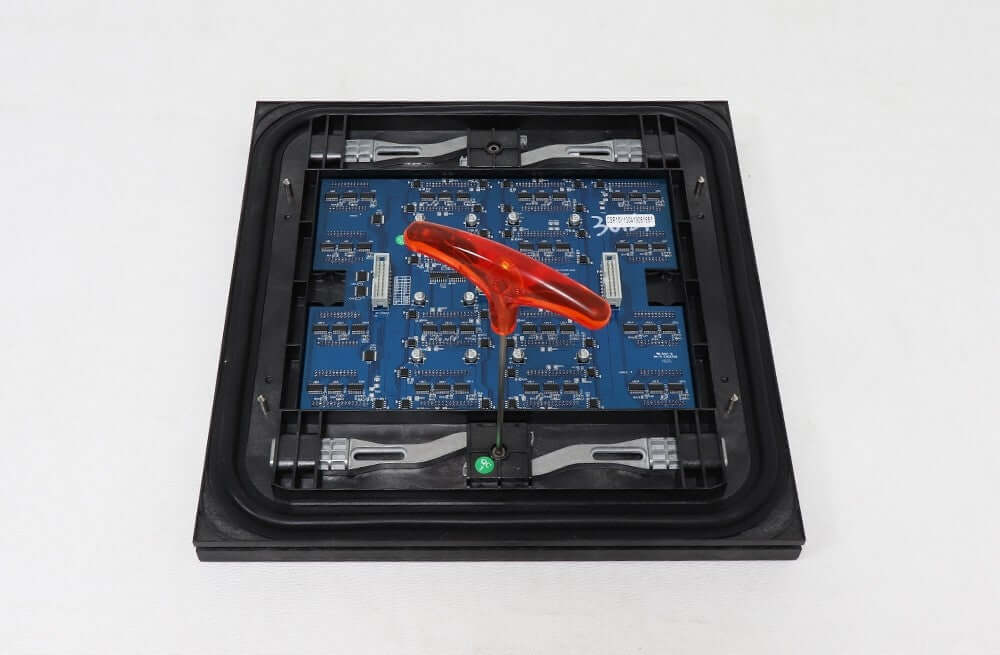

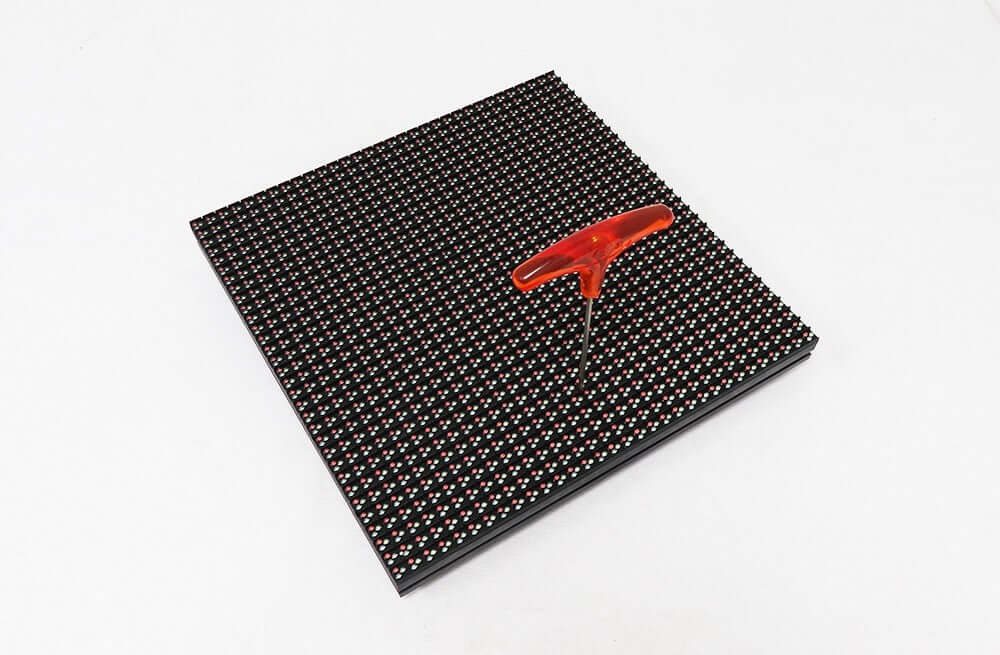

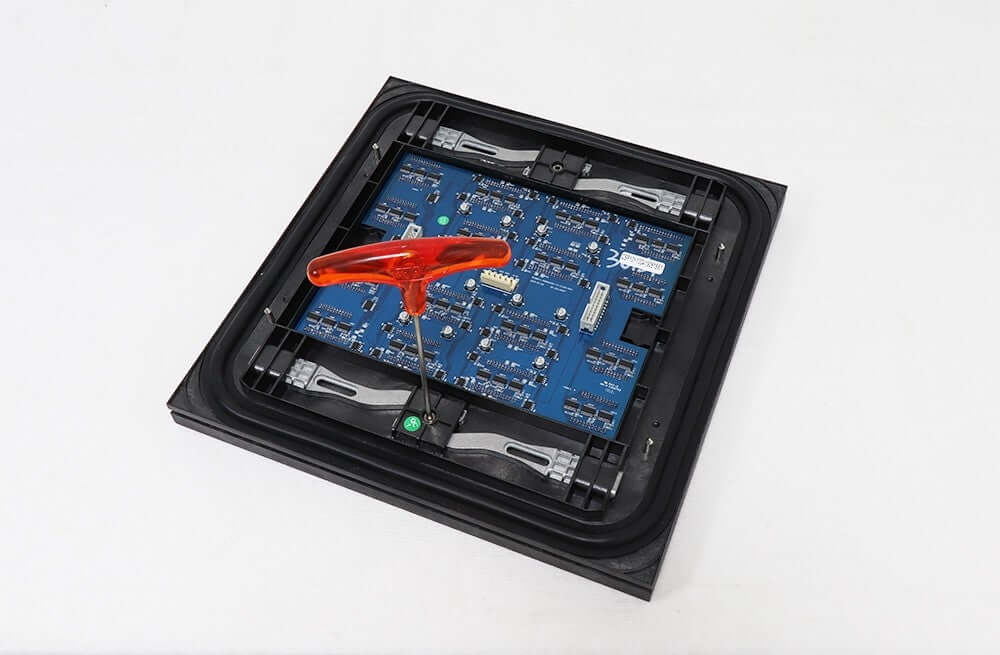

Features of P10 1R1G1B 320x320 Outdoor Dual Maintenance LED Module:
1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.
2) Easy maintenance, easy to take the modules with a hexagonal screwdriver.
3) No screws, easier to take the modules and mount the modules on the cabinet.
4) 10mm pixel pitch is suitable for small banner screen.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
PCB Versions of P10 1R1G1B 320x320 Outdoor Dual Maintenance LED Module:
|
P10U4L-RGB32X32-EMC-Y1401-SWH |
P10U4L-RGB32X32-Y1212-SWH |
|
P10QU4L-RGB32X32-J1210-SWH |
P10QU4L-RGB32X32-Y1212-SWH |
|
P10U4L-RGB32X32-J1210-SWH |
P10DU4L-RGB32X32-J1210-SWH |
Parameters of P10 1R1G1B 320x320 Outdoor Dual Maintenance LED Module:
|
Item |
Specification |
|
LED type |
DIP346 |
|
Pixel pitch |
10mm |
|
Pixel configuration |
1R1G1B |
|
Module Size |
320x320mm |
|
Module resolution |
32x32pixels |
|
Density |
10,000 pixels/ ㎡ |
|
Driving Mode |
1/4 duty |
|
Brightness |
≥8000CD/ ㎡ |
|
Viewing angle |
H:120°, V:120° |
|
Best viewing distance |
10m---100m |
|
Working voltage |
5V |
|
Power consumption |
60W |
|
Module weight |
2.5 KG |
|
>Protection grade |
Front: IP65 |
|
Working Temperature |
-20 ～60℃ |
