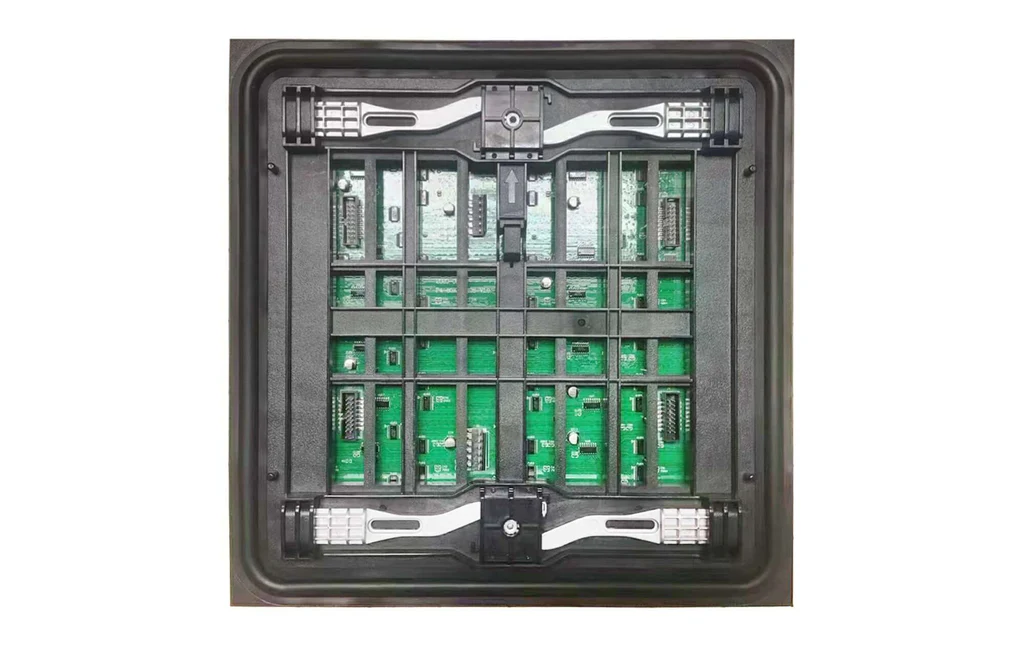

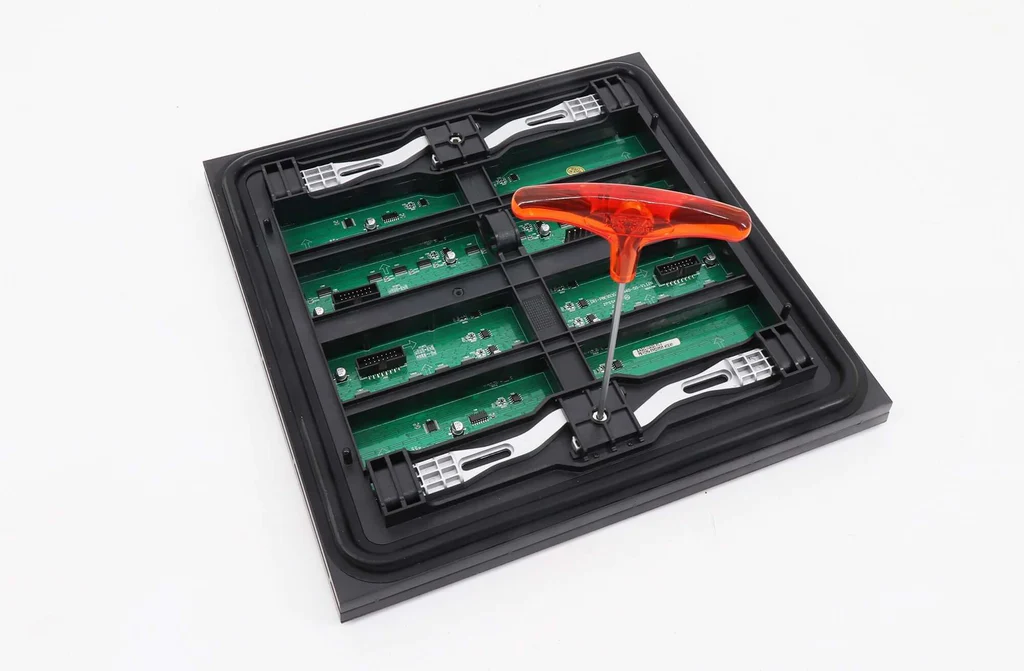

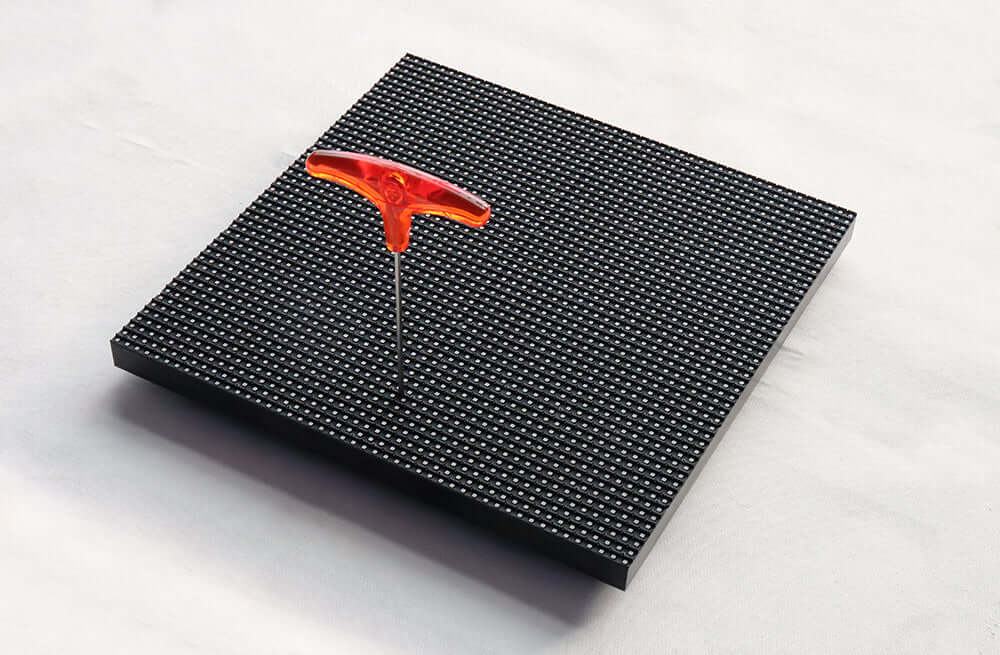

P4 Outdoor 320x320mm SMD1921 Front Service LED Panel Module

Module Parameter

Pixel Pitch

4mm

Pixel Configuration

SMD1921

Density

62,500 pixels/㎡

Module Resolution

80pixel(L) * 80pixel(H)

Module Dimension

320mm(L) * 320mm(H) * 20mm(D)

Driving Mode

Constant current, 1/10 duty

Module Mask

Pure black mask---high contrast screen

Electricity Parameter

Optical Ratings

Brightness

≥6,000 CD/㎡

Viewing Angle

140°(Horizontal); 120°(Vertical)

Best Viewing Distance

≥4m

Gray Grade

14 bits

Display Color

4.4 trillion colors

Brightness Adjustment

100 grades by software or automatically by sensor

Max. Power Consumption

85 W

Control System

Frame Frequency

≥60Hz

Refresh Frequency

≥1920Hz

Input Signal

Composite Video, S-video, DVI, HDMI, SDI, HD-SDI

Control Distance

100M (Ethernet cable);

20KM (Optical fiber cable)

Support VGA Mode

800*600, 1024*768, 1280*1024, 1600*1200

Color Temperature

5000�9300 adjustable

Brightness Correction

Pixel by pixel, module by module, cabinet by cabinet

Reliability

Working Temperature

-20～+60 ºC

Storage Temperature

-30～+70 ºC

Working Humidity

10%～90% RH

Lifetime

100,000 hours

MTBF

5000 hours

Continuous Operating Time

≥72 hours

Protection Grade

IP65

Out-of-Control Pixel Rate

≤0.01%
