฿2,900.00
จำนวนในสต็อก: 30
ยี่ห้อ: SHENZHEN G-ENERGY
รหัสสินค้า: JPS300P-A5.0V
Availability:
In stock (30 items available)

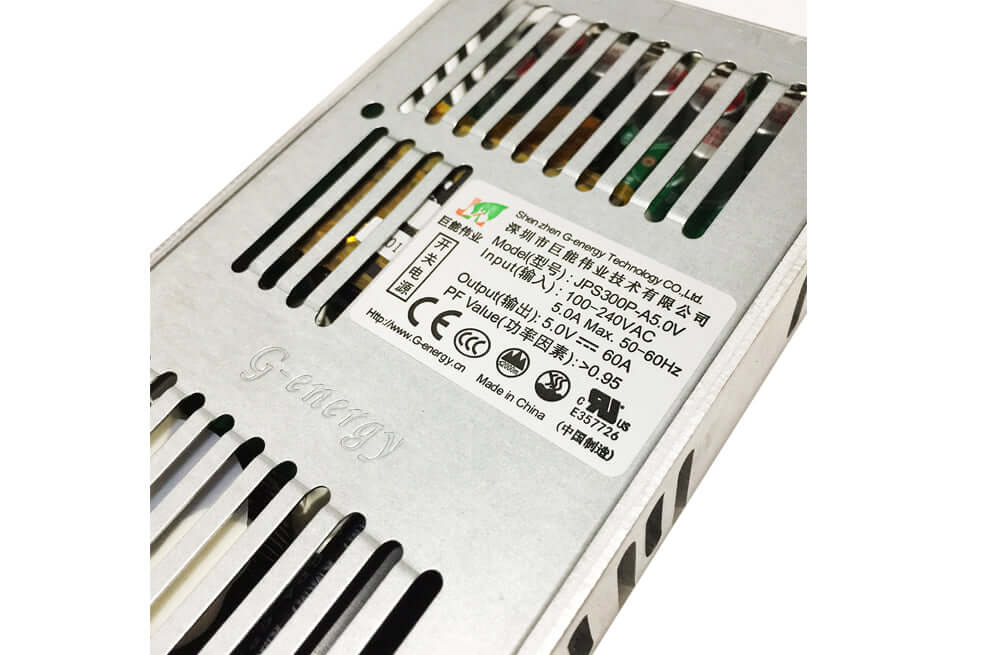

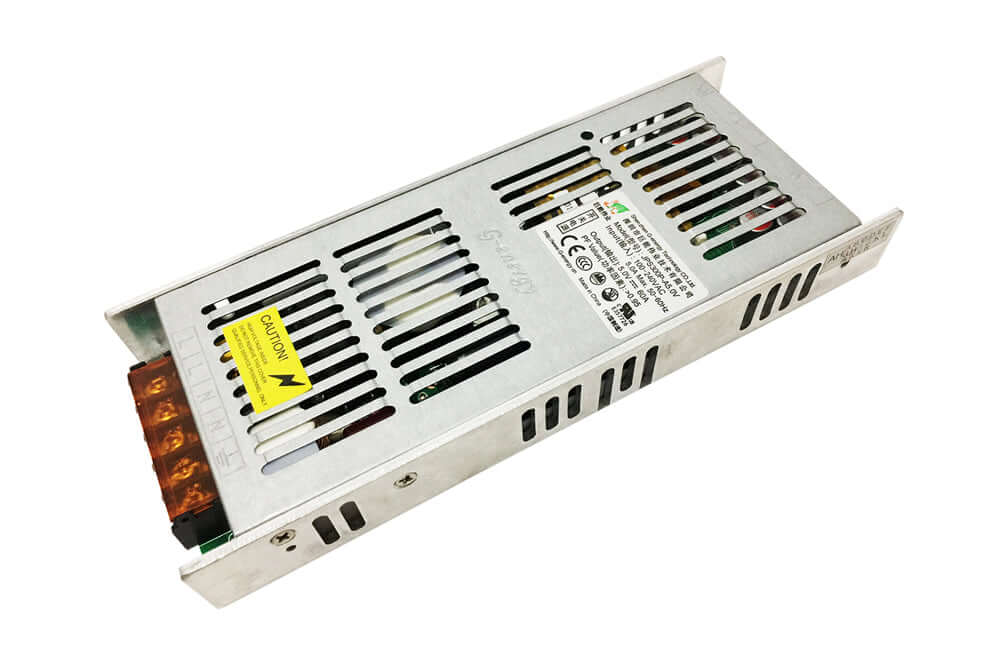

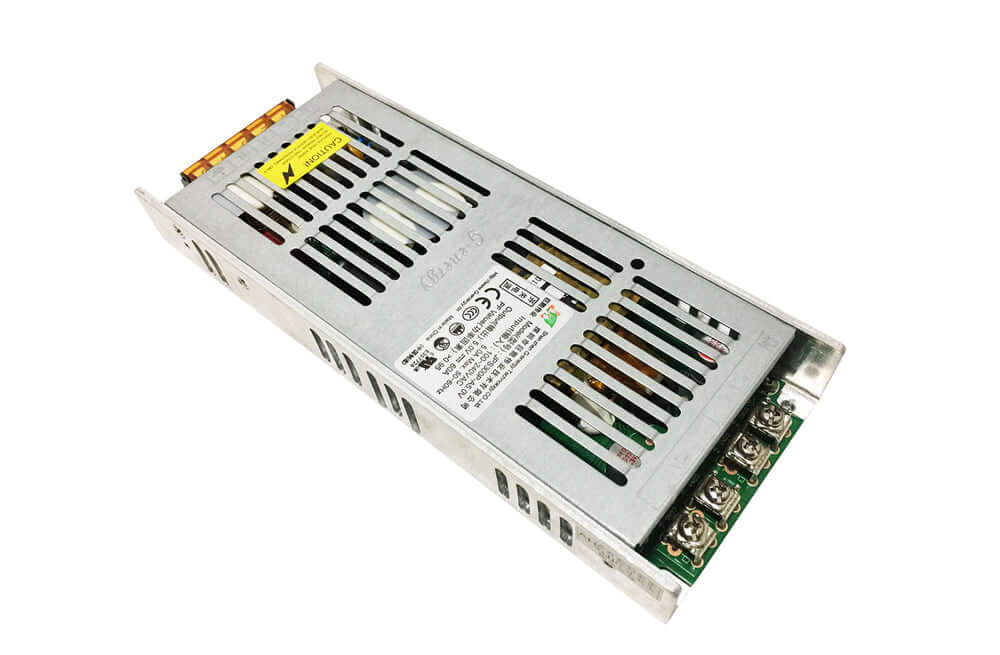

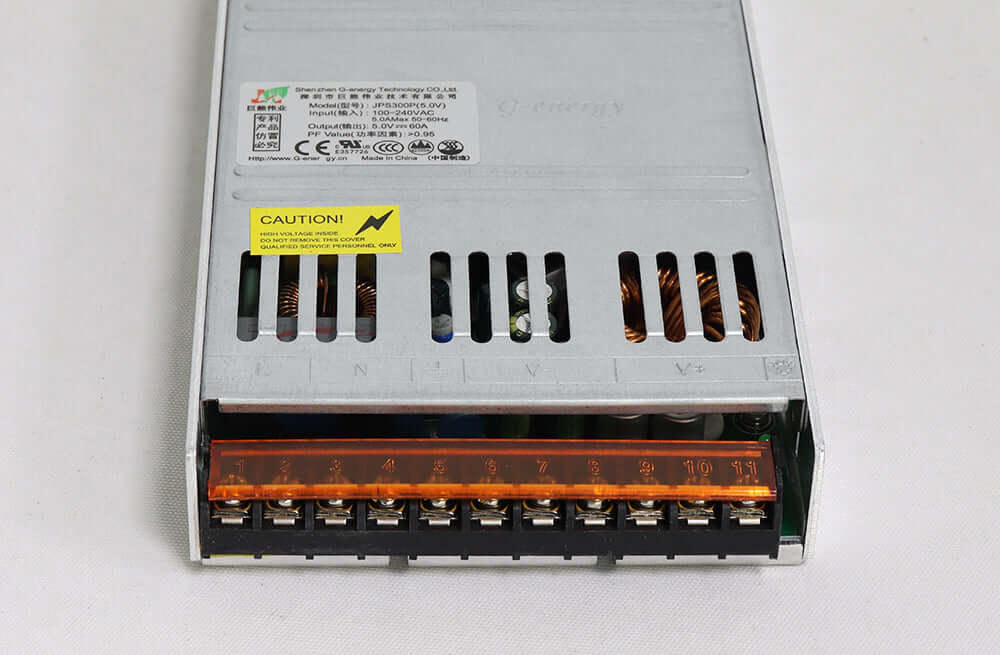

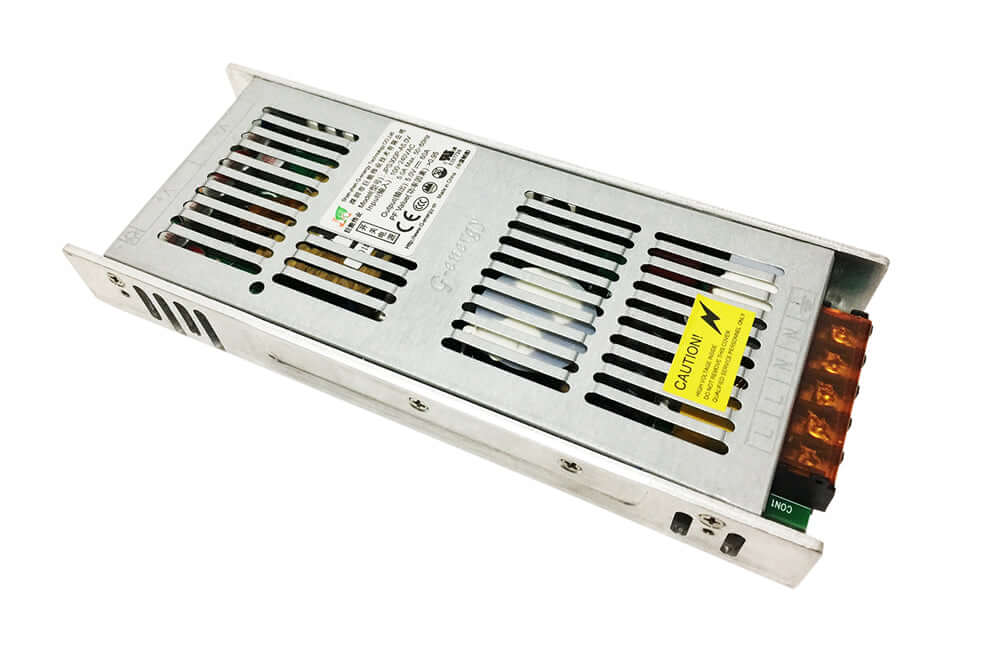

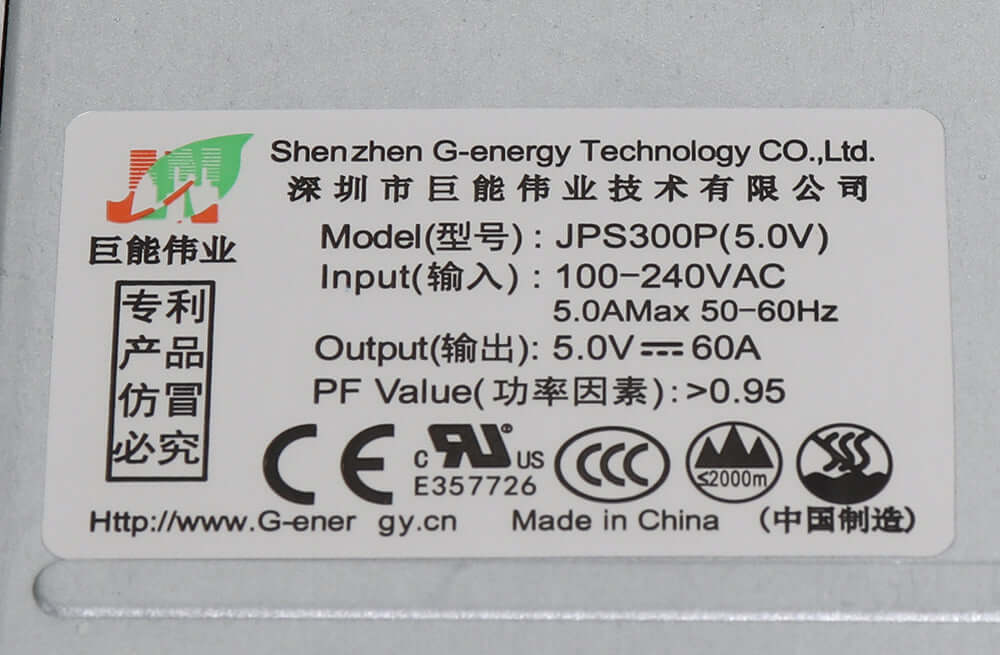

G-Energy JPS300P-A5.0V Full Color LED Video Screen Power Supply Features:
Output power: 300W Max
Leakage current: <1 mA (VIN: 230)
Working temperature: -30 ° C ~ 50 ° C
Cooling method: self-cooling
Storage temperature: -40~80°C
Input voltage: 100-240VAC, 47-63Hz
Insulation voltage: I / P-O / P: 3.0KVac; I / P-FG: 1.5KVAC; O / P-FG: 0.5KVAC
Safety standards: GB4943, EN60950
Protection function: input undervoltage, overload protection, short circuit protection
Power factor: 0.95@230Vac
Size: length × width × height = 213 × 85 × 30
G-Energy JPS300P-A5.0V
Full Color LED Video Screen Power Supply Parameter:
|
Model |
Classification |
Output voltage |
Output current |
Ripple & Noise |
Efficiency |
|
JPS300P-A5.0V |
Constant pressure |
5V |
0-60A |
≤200mV |
≥88% |
