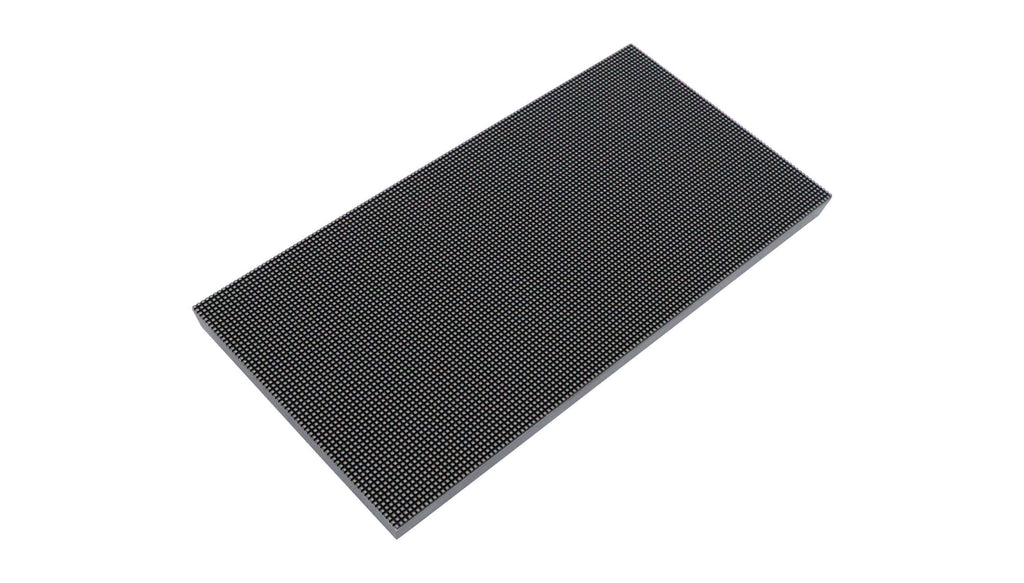

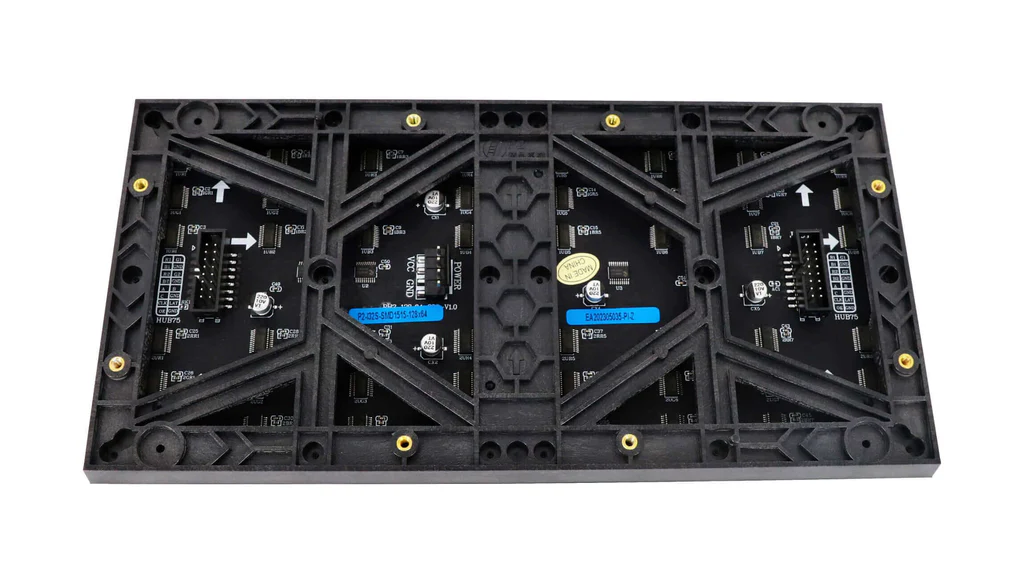

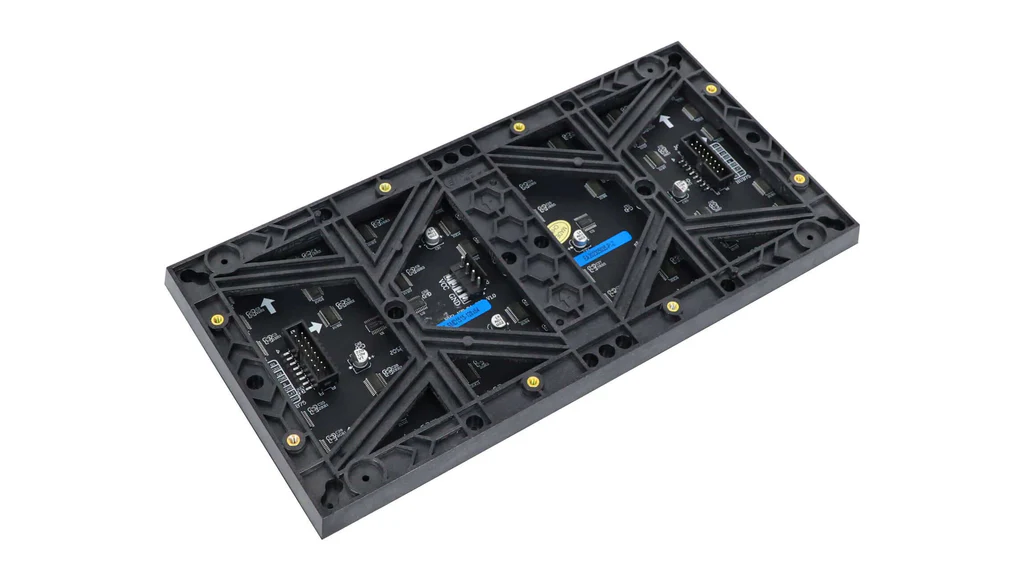

Indoor P2 HD LED Display Module 256X128mm

LED Lamp Specification

Color

Package

Intensity

Viewing

 Angle

Wavelength

Testing

Conditions

Red

SMD1515

45-65mcd

120°/120°

620-625nm

25℃,10mA

Green

SMD1515

120-200mcd

120°/120°

516-530nm

25℃,5mA

Blue

SMD1515

20-40mcd

120°/120°

465-475nm

25℃,5mA

Module Parameter

Pixel Pitch

2mm

Pixel Configuration

SMD1515

Density

250,000 pixels/㎡(real pixel)

Module Resolution

128pixel(L) * 64pixel(H)

Module Dimension

256mm(L) * 128mm(H) * 18mm(D)

Driving Mode

Constant current, 1/32 duty

Electricity Parameter

Optical Ratings

Brightness

≥1,200 cd/㎡

Viewing Angle

120°(Horizontal); 120°(Vertical)

Best Viewing Distance

≥2m

Gray Grade

14 bits

Display Color

4.4 trillion colors

Brightness Adjustment

100 grades by software or

automatically by sensor

Max. Power Consumption

40W

control system

Frame Frequency

≥60Hz

Refresh Frequency

≥1920Hz

Input Signal

Composite Video, S-video,

DVI, HDMI, SDI, HD-SDI

Control Distance

100M (Ethernet cable);

20KM(optical fiber cable)

Support VGA Mode

800*600, 1024*768,

1280*1024, 1600*1200

Color Temperature

5000�9300 adjustable

Brightness Correction

Pixel by pixel, module by

module, cabinet by cabinet

Reliability

Working Temperature

-20～+60 ºC

Storage Temperature

-30～+70 ºC

Working Humidity

10%～90% RH

Lifetime

100,000 hours

MTBF

5000 hours

Continuous Operating Time

≥72 hours

Protection Grade

IP31

Out-of-Control Pixel Rate

≤0.01%
