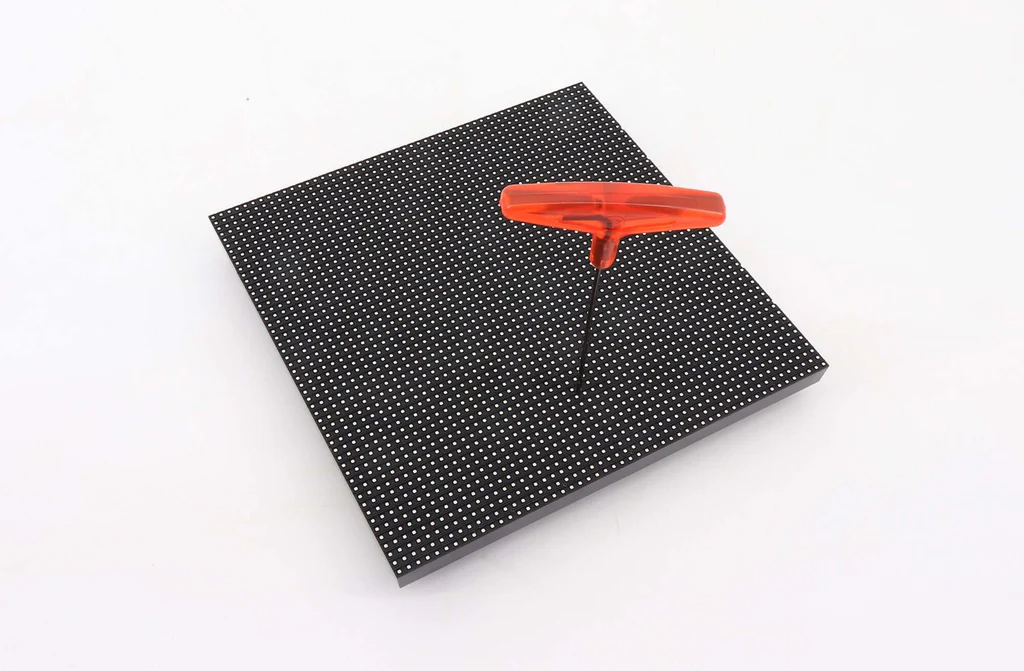

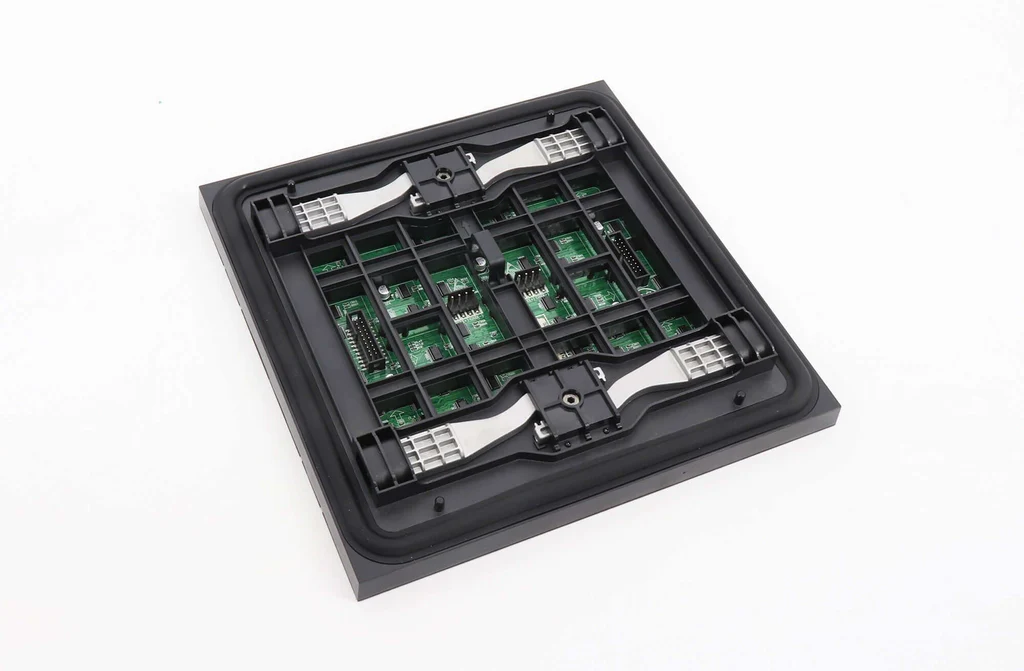

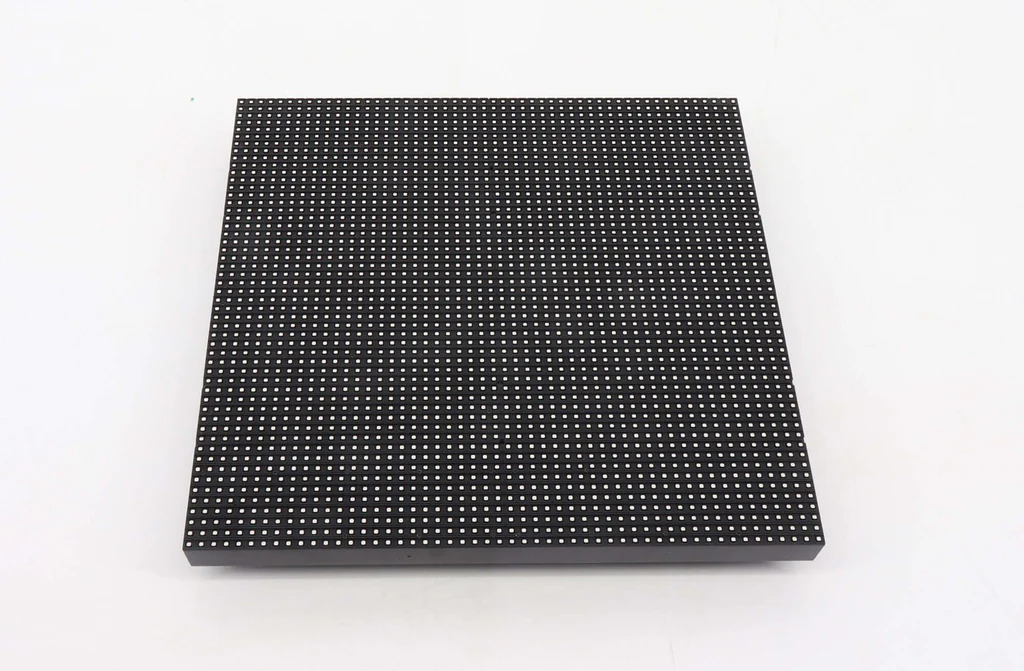

P4.81 Outdoor 250x250 Front Access LED Panel Module

฿3,600.00

จำนวนในสต็อก: 20

ยี่ห้อ: Eager-LED
รหัสสินค้า: P4.81-OD6S-SMD1921-52x52
Availability: In stock (20 items available)

จำนวน:

รายละเอียดสินค้า
ข้อมูลเฉพาะ
Download

รายละเอียดสินค้า

Features of P4.81 Outdoor 250x250 Front Access LED Panel Module:

1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.

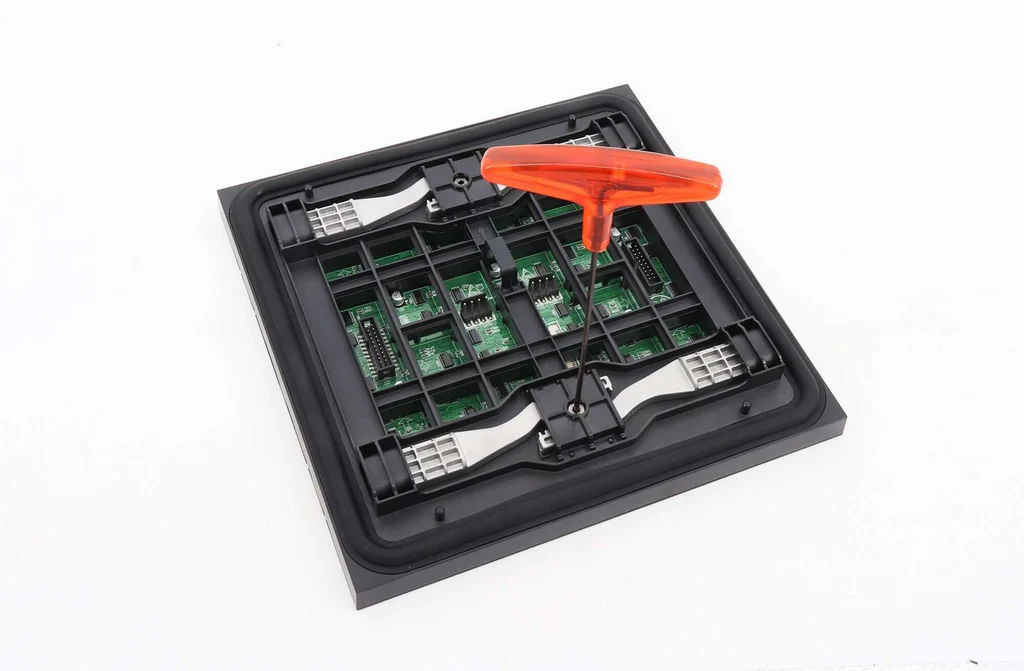

2) Easy maintenance, easy to take the modules with a hexagonal screwdriver.
3) No screws, easier to take the modules and mount the modules on the cabinet.
4) 3.91mm pixel pitch with SMD, perfect solution for semi-outdoor advertising LED screen and outdoor rental LED screen.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
6) Reasonable PCB design, reliable and long life time.

Applicable situations of P4.81 Outdoor 250x250 Front Access LED Panel Module:

Outdoor LED signs requiring front maintenance
Commercial video screens with small sizes
Double face LED signs
Small LED banner signs
Outdoor rental LED screen requiring fast maintenance

ข้อมูลเฉพาะ

Parameters of P4.81 Outdoor 250x250 Front Access LED Panel Modulee:

Module Parameter
Pixel Pitch	4.81mm
Pixel Configuration	SMD1921
Density	43,264 pixels/㎡
Module Resolution	52pixel(L) *52pixel(H)
Module Dimension	250mm(L) * 250mm(H) * 18mm(D)
Driving Mode	Constant current, 1/6 duty
Module Mask	Pure black mask---high contrast screen
Electricity Parameter
Optical Ratings
Brightness	≥6,000 cd/㎡
Viewing Angle	120°(Horizontal); 120°(Vertical)
Best Viewing Distance	≥5m
Gray Grade	14 bits
Display Color	4.4 trillion colors
Brightness Adjustment	100 grades by software or automatically by sensor
Max. Power Consumption	35 W
Control System
Frame Frequency	≥60Hz
Refresh Frequency	≥1920Hz
Input Signal	Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance	100M (Ethernet cable);
Control Distance	20KM (Optical fiber cable)
Support VGA Mode	800600, 1024768, 12801024, 16001200
Color Temperature	5000�9300 adjustable
Brightness Correction	Pixel by pixel, module by module, cabinet by cabinet
Reliability
Working Temperature	-20～+60 ºC
Storage Temperature	-30～+70 ºC
Working Humidity	10%～90% RH
Lifetime	100,000 hours
MTBF	5000 hours
Continuous Operating Time	≥72 hours
Protection Grade	IP65
Out-of-Control Pixel Rate	≤0.01%
