฿3,750.00
จำนวนในสต็อก: 15
ยี่ห้อ: Eager-LED
รหัสสินค้า: P16-OF1L-1R1G1B20x20
Availability:
In stock (15 items available)

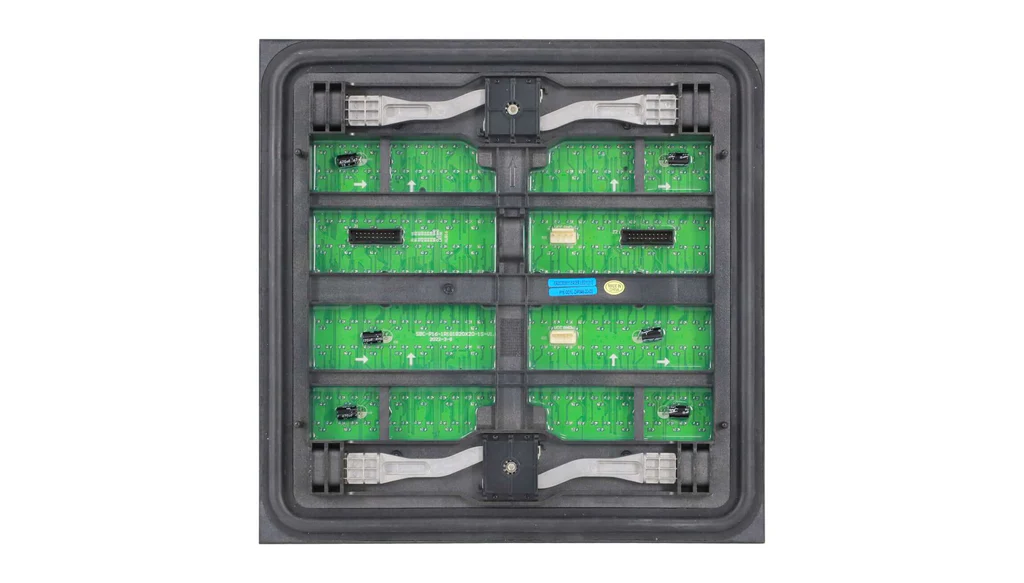

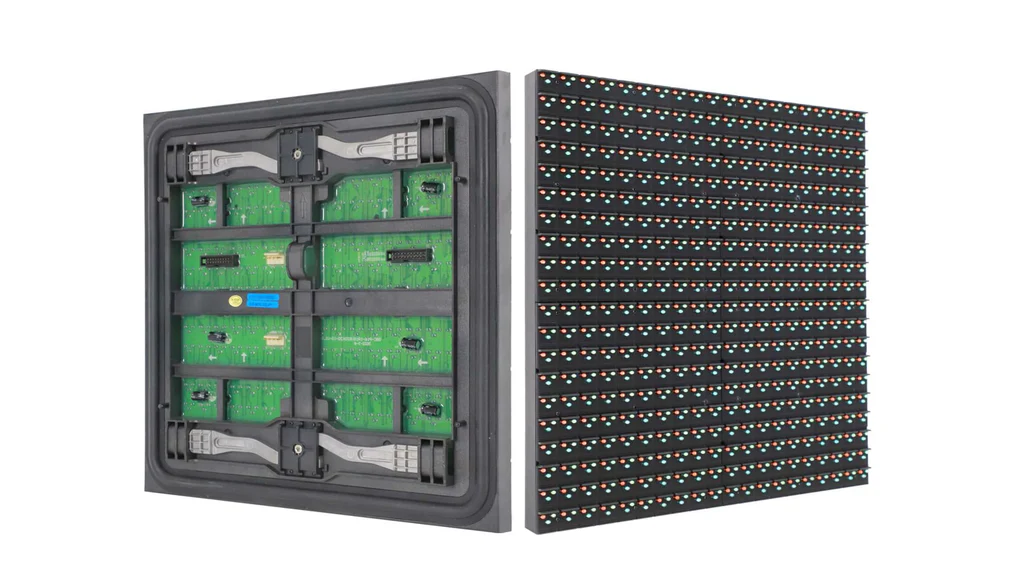

Features of P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm:
1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.

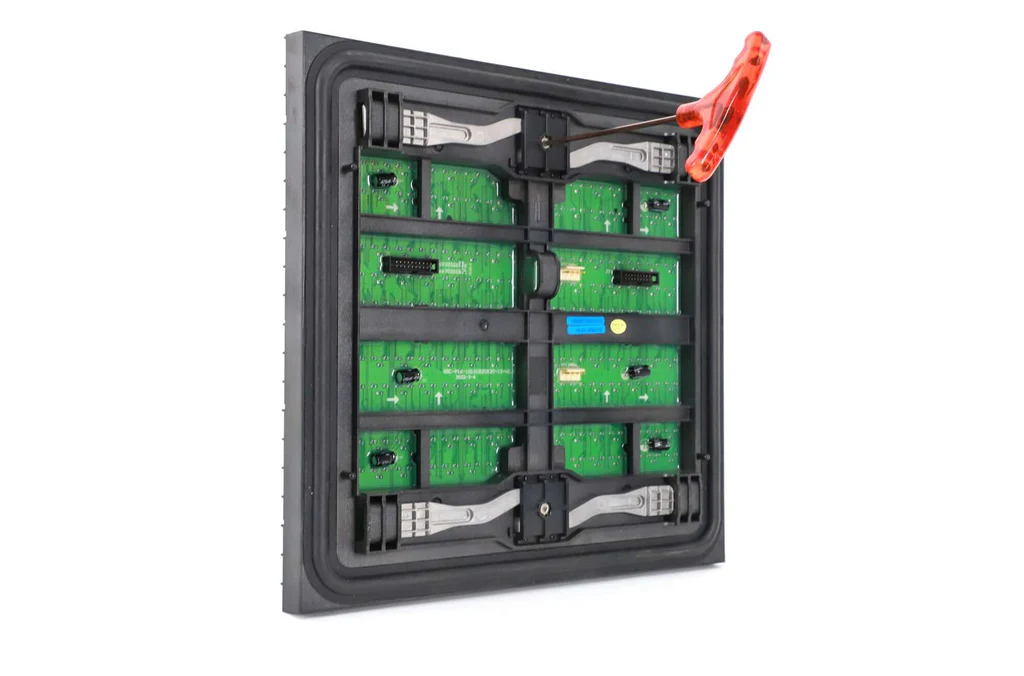

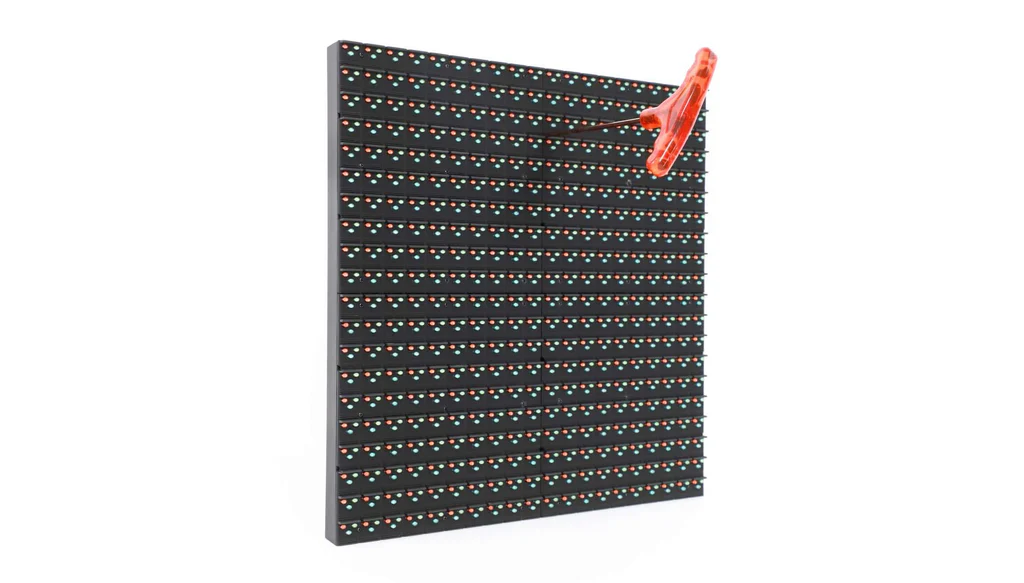

2) Easy maintenance, easy to take the modules with a 4mm hexagonal screwdriver.
3) No screws, easier to take the modules and mount the modules on the cabinet.
4) 16mm pixel pitch with DIP, perfect solution for semi-outdoor advertising LED screen and outdoor rental LED screen.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
6) Reasonable PCB design, reliable and long life time.
Applicable situations of P16 Front Access LED Module Outdoor 1R1G1B DIP 320x320mm:
Outdoor LED signs requiring front maintenance
Commercial video screens with small sizes
Double face LED signs
Small LED banner signs
Outdoor rental LED screen requiring fast maintenance
PCB Versions of P16 Front Access LED Module
Outdoor 1R1G1B DIP 320x320mm:
|
P16U1L-RGB20X20-Y1304-SWH |
P16U1L-RGB20X20-X1304-SWH |
|
P16U1L-RGB20X20-Y1302-SWH |
P16U1L-RGB20X20-Y1301-SWH |
|
P16U1L-RGB20X20-X1035-SWH |
P16U1L-RGB20X20-X1034-SWH |
Parameters of P16 1R1G1B
320x320 Outdoor Front Access LED Module:
|
Item |
Specification |
|
LED
type |
DIP346 |
|
Pixel
pitch |
16mm |
|
Pixel
configuration |
1R1G1B |
|
Module
Size |
320x320mm |
|
Module
resolution |
20x20pixels |
|
Density |
3,906
pixels/ ㎡ |
|
Driving
Mode |
Static |
|
Brightness |
≥9000CD/
㎡ |
|
Viewing
angle |
H:120°,
V:120° |
|
Best
viewing distance |
16m---100m |
|
Working
voltage |
5V |
|
Power
consumption |
54W |
|
Module
weight |
2.5KG |
|
>Protection
grade |
Front:
IP43 |
|
Working
Temperature |
-20
～60℃ |
