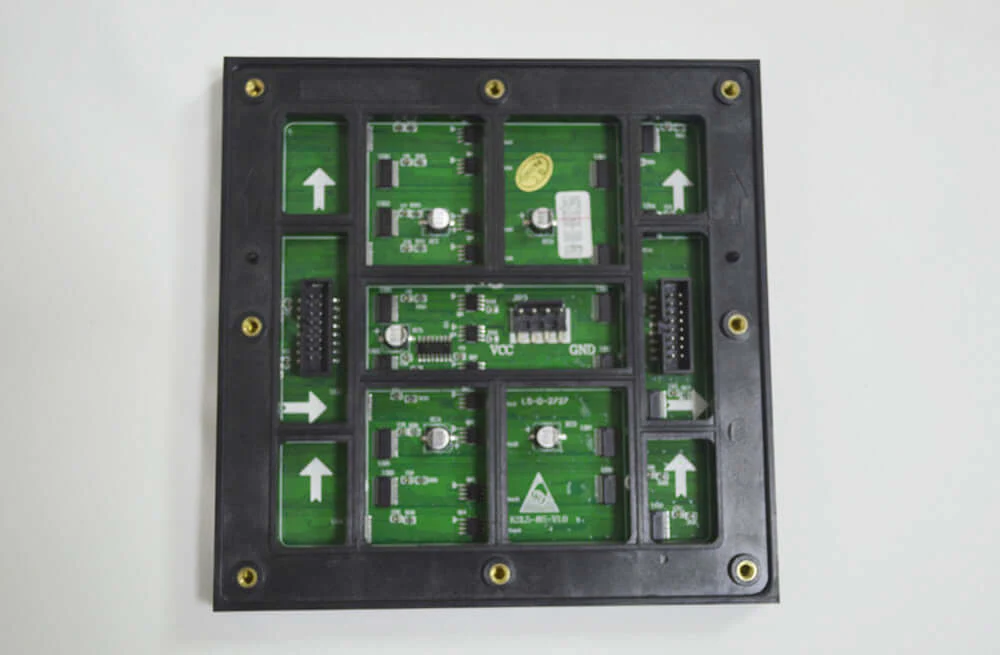

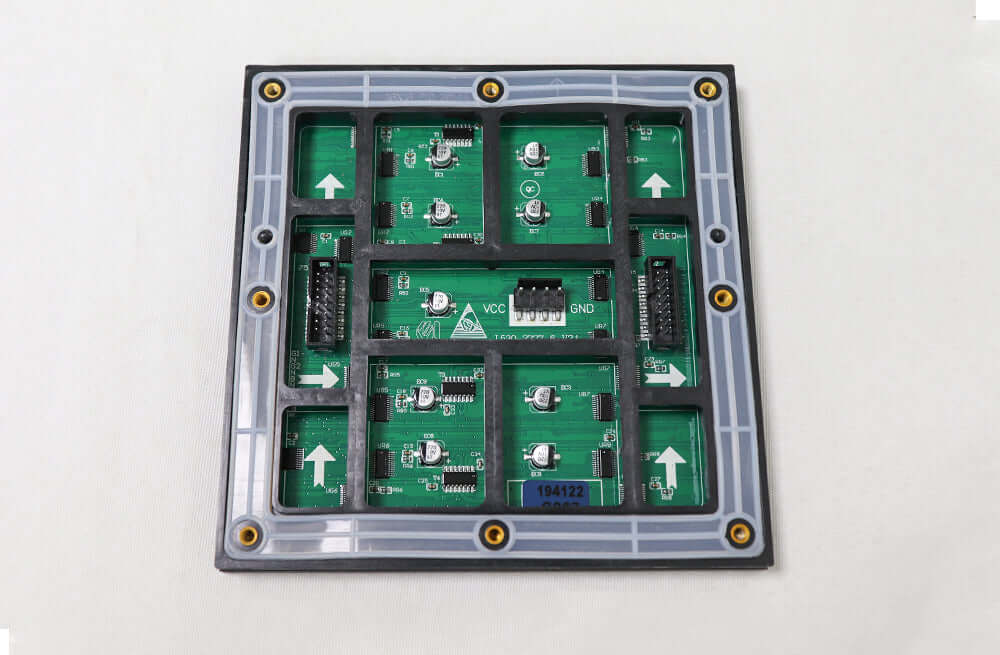

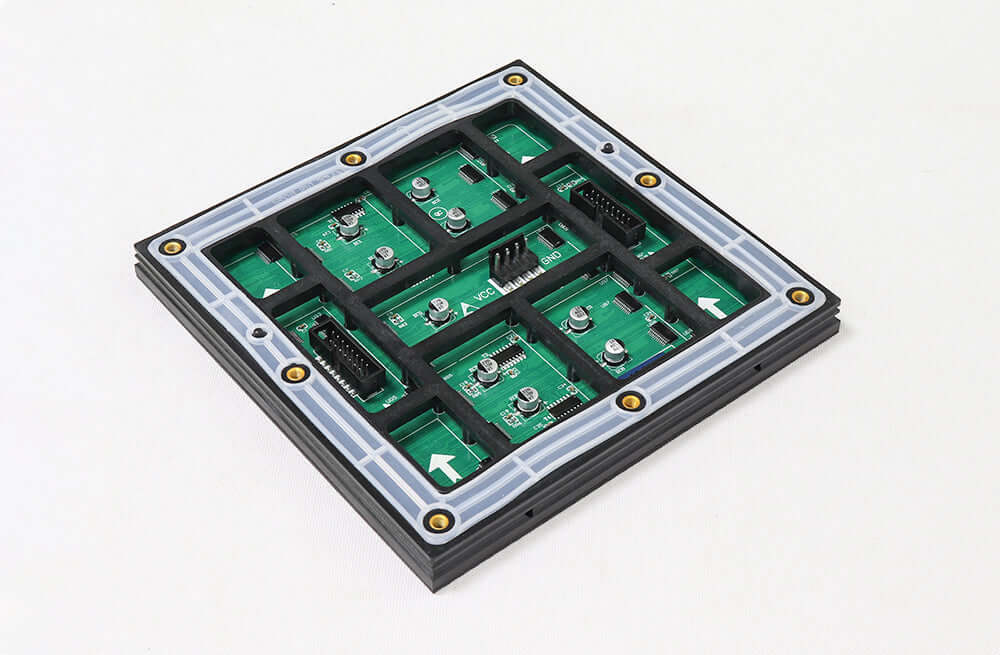

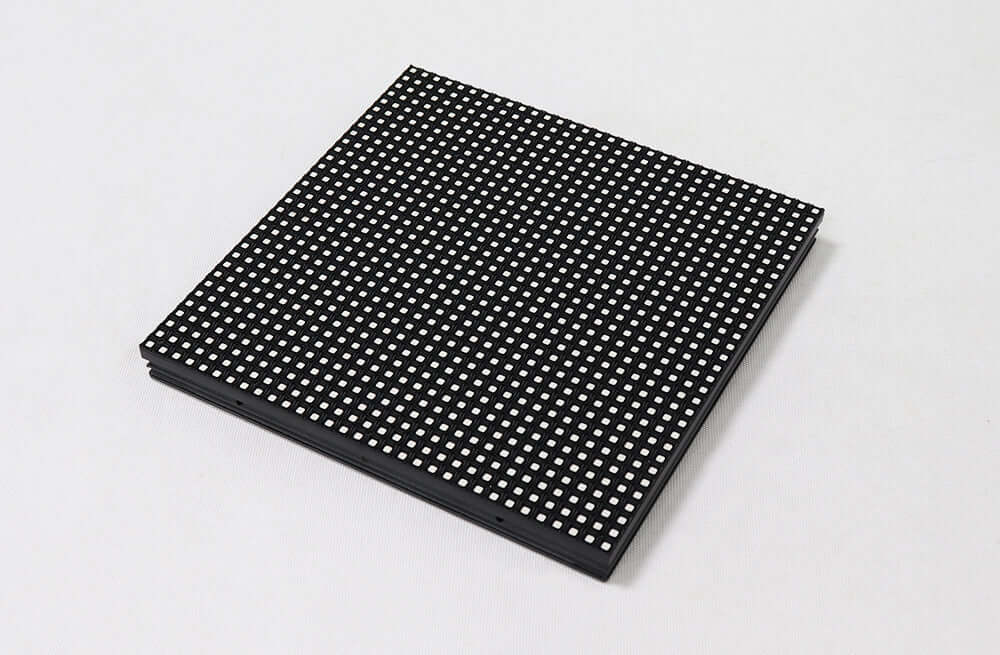

Outdoor P5 160x160mm SMD LED Screen Module

LED Lamp Specification

Color

Package

Intensity

Viewing Angle

Wavelength

Testing Conditions

Red

450-600mcd

120°

620-625nm

25℃,20mA

Green

1000-1400mcd

120°

516-530nm

25℃,20mA

Blue

200-400mcd

120°

465-475nm

25℃,20mA

Module Parameter

Pixel Pitch

5mm

Pixel Configuration

SMD1921

Density

40,000 pixels/㎡

Module Resolution

32pixel(L) * 32pixel(H)

Module Dimension

160mm(L) * 160mm(H) * 25mm(D)

Driving Mode

Constant current, 1/8 duty

Module Mask

Pure black mask---high contrast screen

Electricity Parameter

Optical Ratings

Brightness

≥6000 cd/㎡

Viewing Angle

120°(Horizontal); 120°(Vertical)

Best Viewing Distance

≥5m

Gray Grade

14 bit

Display Color

4.4 trillion colors

Brightness Adjustment

100 grades by software or automatically by sensor

Max. Power Consumption

25 W

Control System

Frame Frequency

≥60Hz

Refresh Frequency

≥1920Hz

Input Signal

Composite Video, S-video, DVI, HDMI, SDI, HD-SDI

Control Distance

100m(Ethernet cable);

20KM(optical fiber cable)

Support VGA Mode

800*600, 1024*768, 1280*1024, 1600*1200

Color Temperature

5000�9300 adjustable

Brightness Correction

Pixel by pixel, module by module, cabinet by cabinet

Reliability

Working Temperature

-20～+60 ºC

Storage Temperature

-30～+70 ºC

Working Humidity

10%～90% RH

Lifetime

100,000 hours

MTBF

5000 hours

Continuous Operating Time

≥72 hours

Protection Grade

IP65

Out-of-Control Pixel Rate

≤0.01%
